CE RoHS 60A 5V LED Power Supply 300W LED Driver 77% Efficiency With Fan


Place of OriginCHINA
Brand NameWHOOSH
CertificationCE RoHS
Model NumberHX-300-5
Minimum Order Quantity90 pcs
PriceUSD 9.5-10
Packaging Detailsin cartons, 36 pcs for one carton, 460*265*385mm, 23kgs
Delivery Time5~18 working days
Payment TermsT/T, Western Union, L/C
Supply Ability20000 pcs per day
Product Details
Output Current60 AOutput Voltage5 V
Input Voltage200~240VOutput Power300w Max
ApplicationLed ScreenOutput TypeSingle Output
Warranty2 Years

High LightRoHS 60A 5V LED Power Supply, CE 60A 300W LED Driver, 77% Efficiency 300W LED Driver

Product Description
Product Description

Regular 5V 60A led display power supply with fan for led display led screen

Specification
InputOutputDimesion (mm)IP gradeProtectionEfficiency
200~240v AC5v 60amps215*113*33IP 20over voltage, over load, short circuit>77%
Installation

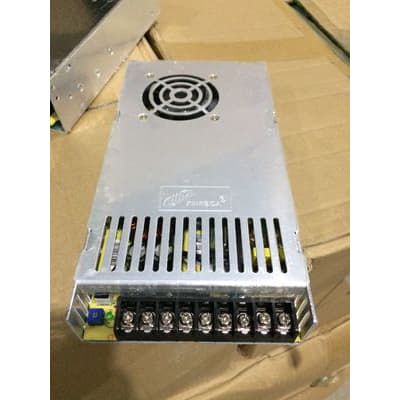

pic-1

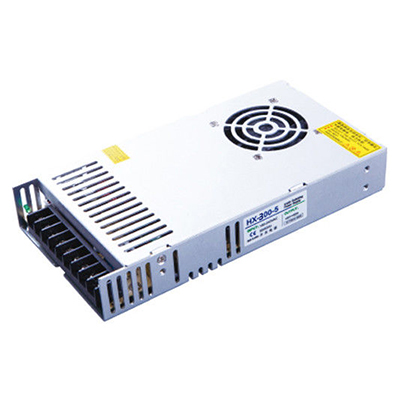

pic-2


Features
DUAL TRANSISTOR FORWARDER SCHEME

Adopt advanced power management chip scheme which is mature and reliable for many years Two-transistor forward uses two mosfets. mosfet has small impedance, low loss, high efficiency,low temperature rising.

MANUFACTURING PROCESS

By applying smd chip technology and smd components,significantly improve product stability, reduce the power supply's weight.

TRANSFORMER

Pure copper winding, secondary winding specially added copper slice as a heat conduction material, effectively control temperature rising.

OUTPUT INDUCTOR

More coil turns and higher permeability leads to high inductance.Output inductor using sendust as core material. With high inductance,power supply's size is smaller and weight is lighter.

EMI CIRCUIT

Adopt first order EMI filter circuit to meet EMI requirements and design standard, effectively avoid display interference caused by power supply.

PROTECTION CIRCUIT

With built-in separate overload, short circuit protection circuit to ensure that in case user's system is abnormal, no safety problems occurs, neither damage occurs to the system. Provide stable, reliable and safe power supply to customers.

pic-3

INPUT CHARACTERISTICS

Rated Input Voltage: 200~240Vac

Rated Input Frequency: 50/60Hz

Input Current: 2.8Amps max At any input voltage and rated, DC output rated load.

Inrush Current: 100 Amps Max. Cold start at 240Vac input, with rated load and ambient 25 ℃ .

AC Leakage Current: 3.5mA Max. at 240 V ac input.

OUTPUT CHARACTERISTICS
VoltageMin LoadRated LoadPeak@10msRated Output Power
5V DC0 amps60 amps330 W300w
Combined Load/Line Regulation
VoltageMin LoadRated LoadLine RegulationLoad Regulation
5V DC0 amps60 amps+/- 3%+/- 5%
Ripple and Noise

Under nominal voltage and nominal load,the ripple and noise are as follows when measure with Max.Bandwidth of 20MHz and Parallel 47uF/0.1uF,crossed connected at testing point.

VoltageRipple and Noise(Max.)
5V DC150mV p-p
Turn on delay time

2 Seconds max.at 220V ac input and output max load.

Rise time

400 ms max.at 220V ac input and output max load.

Efficiency

77% min, at 220V ac input voltage and full load calculation efficiency.

Overshoot

10% max when power supply at turn or turn off.

PROTECTION FUNCTION

Over current Protection:
The power supply will be auto recovered when over current faults remove.

Operating Temperature

-20℃ to 40℃ ,Full load , Normal operation.

Storage Temperature

-20℃ to 40℃ ,with package..

Relative Humidity

5%(0 ℃ )~90%(40℃ )RH, Full load, Normal operating.

SAFETY AND EMI REQUIREMENT

Design by IEC60950 standard.

DIELECTRIC STRENGTH Hi-Pot

Primary to secondary: 1500Vac/10mA/60S for type test.

Primary to case: 1500Vac/10mA/60S for type test.

Secondary to case: 300Vac/10mA/60S for type test.

Iusulation resistance

Primary to secondary: 10MΩ min at 500V DC.

EMI STANDARD

Designed according to the following standards

<1>. Fcc class B rules
<2>. EN55022 class B rules
<3>. GB9254-1998,GB17625.1-2003
