Slim 60Amp LED Display Power Supply 50/60Hz 5V 300W LED Power Supply
| Place of Origin | CHINA |
|---|---|
| Brand Name | WHOOSH |
| Certification | CE RoHS |
| Model Number | HX-300N-5 |
| Minimum Order Quantity | 90 pcs |
| Price | USD 10-10.5 |
| Packaging Details | in cartons, 32 pcs for one carton, 460*265*385mm, 18kgs |
| Delivery Time | 5~18 working days |
| Payment Terms | T/T, Western Union, L/C |
| Supply Ability | 20000 pcs per day |
Product Description
Product Description

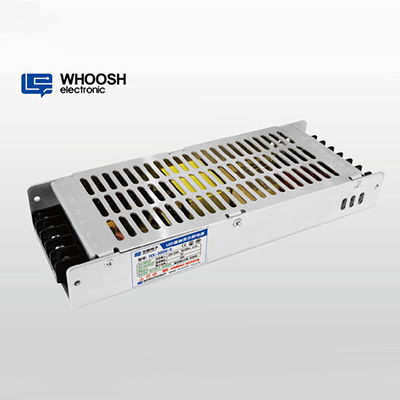

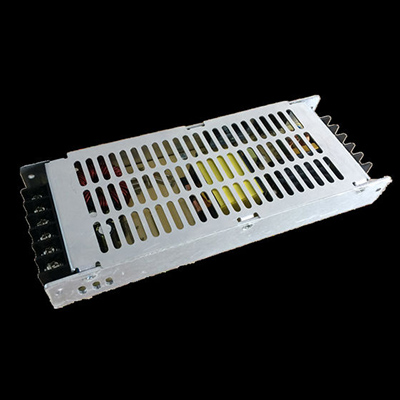

Slim size 30mm duel side 5V 60A LED screen power supply, led display power supply
Specification
| Input | Output | Dimesion (mm) | IP grade | Protection | Efficiency |
| 200~240v AC | 5v 60amps | 215.4*82*30.5 | IP 20 | over voltage, over load, short circuit | >88% |
Installation
Features
DUAL TRANSISTOR FORWARDER SCHEME:
Adopt advanced power management chip scheme which is mature and reliable for many years Two-transistor forward uses two mosfets. mosfet has small impedance, low loss, high efficiency,low temperature rising.
MANUFACTURING PROCESS:
By applying smd chip technology and smd components,significantly improve product stability, reduce the power supply's weight.
TRANSFORMER:
Pure copper winding, secondary winding specially added copper slice as a heat conduction material, effectively control temperature rising.
OUTPUT INDUCTOR:
More coil turns and higher permeability leads to high inductance.Output inductor using sendust as core material. With high inductance,power supply's size is smaller and weight is lighter.
EMI CIRCUIT:
Adopt first order EMI filter circuit to meet EMI requirements and design standard, effectively avoid display interference caused by power supply.
PROTECTION CIRCUIT:
With built-in separate overload, short circuit protection circuit to ensure that in case user's system is abnormal, no safety problems occurs, neither damage occurs to the system. Provide stable, reliable and safe power supply to customers.
INPUT CHARACTERISTICS
Rated Input Voltage: 200~240Vac
Rated Input Frequency: 50/60Hz
Input Current: 3.2Amps max At any input voltage and rated, DC output rated load.
Inrush Current: 80 Amps Max. Cold start at 240Vac input, with rated load and ambient 25 ℃ .
AC Leakage Current: 3.1mA Max. at 240 V ac input.
OUTPUT CHARACTERISTICS
| Voltage | Min Load | Rated Load | Peak@10ms | Rated Output Power |
| 5V DC | 0 amps | 60 amps | 360 W | 300w |
Combined Load/Line Regulation
| Voltage | Min Load | Rated Load | Line Regulation | Load Regulation |
| 5V DC | 0 amps | 60 amps | +/- 3% | +/- 5% |
Ripple and Noise
Under nominal voltage and nominal load,the ripple and noise are as follows when measure with Max.Bandwidth of 20MHz and Parallel 47uF/0.1uF,crossed connected at testing point.
| Voltage | Ripple and Noise(Max.) |
| 5V DC | 300mV p-p |
Turn on delay time
2 Seconds max.at 220V ac input and output max load.
Rise time
400 ms max.at 220V ac input and output max load.
Efficiency
88% min, at 220V ac input voltage and full load calculation efficiency.
Overshoot
10% max when power supply at turn or turn off.
PROTECTION FUNCTION
Over current Protection:
The power supply will be auto recovered when over current faults remove.
Operating Temperature:
-20℃ to 40℃ ,Full load , Normal operation.
Storage Temperature
-20℃ to 40℃ ,with package..
Relative Humidity
5%(0 ℃ )~90%(40℃ )RH, Full load, Normal operating.
SAFETY AND EMI REQUIREMENT
Design by IEC60950 standard.
DIELECTRIC STRENGTH Hi-Pot
Primary to secondary: 1500Vac/10mA/60S for type test.
Primary to case: 1500Vac/10mA/60S for type test.
Secondary to case: 300Vac/10mA/60S for type test.
Iusulation resistance
Primary to secondary: 10MΩ min at 500V DC.
EMI STANDARD
Designed according to the following standards
<1>. Fcc class B rules
<2>. EN55022 class B rules
<3>. GB9254-1998,GB17625.1-2003
Product Details
| Output Current | 60 A | Output Voltage | 5 V |
|---|---|---|---|
| Input Voltage | 200~240V | Output Power | 300w Max |
| Application | Led Screen | Output Type | Single Output |
| Warranty | 2 Years | ||
| High Light | Slim 60Amp LED Display Power Supply, 5V 300W LED Power Supply, 60Amp 300W LED Power Supply | ||
Customer Questions & Answers
You can tick the products you need and communicate with us in the message board.
INQUIRY
| MODEL | SIZE/MM | AC INPUT | DC OUTPUT VOLT. | OUTPUT CURRENT | RATED POWER | COOLING | PCS/CTN | WARRANTY |
|---|
