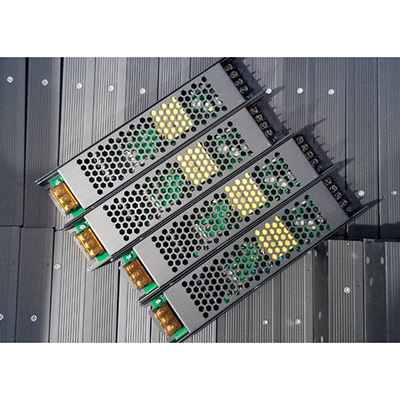

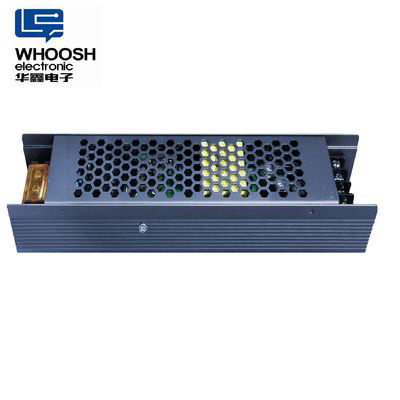

0-10V PWM Dimming 150W LED Driver For LED Colorful Strips And LED Light
| Place of Origin | China |
|---|---|
| Brand Name | WHOOSH |
| Certification | CE |
| Model Number | KS-150TGL-12 |
| Minimum Order Quantity | 50PCS |
| Price | US$1-15 |
| Delivery Time | 2-7 Days |
| Payment Terms | T/T |
| Supply Ability | 20000PCS per day |
Product Description
Product Specification
0-10V PWM Dimming 150W LED Driver LED Power Supply for LED Colorful Strips and LED light
1) Applications
LED colorful strips, LED light, LED Indoor Illumination project.
2) Product Features
Single output, output voltage
0-10V PWM Dimming
High efficiency up to 86%
Dimming effect smooth, no flicker
Protections: Short circuit, over load, Over voltage
3) Output Characteristics
1. Output Power
| Voltage | Min. Load | Rated Load | Peak@10mS | Rated Output Power |
| DC 0-12V | 0A | 12.5A | 180W | 150W |
2. Line Regulation
| Voltage | Min. Load | Rated Load | Line Regulation | Load Regulation |
| DC 0-12V | 0A | 12.5A | ±3% | ±5% |
3. Ripple and Noise
Under nominal voltage and nominal load,the ripple and noise are as follows when measure with Max.Bandwidth of 20MHz and Parallel 47uF/0.1uF,crossed connected at testing point.
| Voltage | Ripple and Noise(Max.) |
| 12V DC | 200mV p-p |
4. Turn on delay time: 2Second Max.at 220Vac input and output Max.load.
5. Rise time:400 mS Max.at 220Vac input and output Max load.
6. Efficiency: 86% Min, At220Vac input voltage and full load calculation efficiency.
7. Overshoot: 5% Max.When power supply at turn or turn off.
4) Protection Functions
1. Short circuit protection: auto recovered when short circuit faults remove.
2. Over Voltage Protection: Hiccup mode
3. Over load protection: auto recovered when over current faults remove.
5) Test
Drop test, Salt Spray Test, Surge test, Ageing test, lightning test, Temperature Variation test etc.
6) Safety Requirement
1. Safety Standard: Safety: Design by IEC60950 standard.
2. DIELECTRIC STRENGTH Hi-Pot:
Primary to secondary:1200Vac/10mA/60S for type test.
Primary to case:1200Vac/10mA/60S for type test.
Secondary to case:300Vac/10mA/60S for type test.
3. Iusulation resistance:Primary to secondary:10MΩ min at 500V DC.
7) EMI Requirement
Designed according to the following standards:
1. FCC class B rules
2. EN55022 class B rules
3. GB9254-1998,GB17625.1-2003
8) OEM
Customize label and Inner box
9) Cautions
1This product should be installed by qualified personnel.
2.This product is non waterproof, need to avoid sun and rain.In case of outdoor use, please ensure it is mounted in a water proof enclosure.
3.Good heat dissipation conditions extend product life. Please install the product in a well-ventilated environment.
4.Please make sure LED power supply output voltage, current is used to meet the product requirements.
5.Please ensure that adequate sized cable is used from the controller to the LED lights to carry the current. Please also ensure that the cable is secured tightly in the connector.
6.Due to safety concerns, PVC or rubber cord of 0.75- 1.5mm² is recommended for input and output terminal(s)(excluding signal terminals). Flat power cord is not suitable.Ensure all wire
connections and polarities are correct before applying power to avoid any damages to the LED lights.
7.In case of malfunction, do not repair it yourself.
Factory Capacibility
1. Professional manufacturer
17 Years experience, 10,000 square meters factory, 400+ employees, 8 production lines
2. Scientific Management
ISO9001:2015 Quality Management System Certified, 7S administration
3. Independent R&D teams
10+ Engineer teams, innovative and independent R&D ability
4. Advanced equipment
SMT plant, wave-soldering machine, Semi-auto assembling, EMC lab, Test Lab, Ageing room etc.
Product Details
| Dimming Mode | 0-10V PWM Dimming/ Traic Dimming | Output Current | 12.5A |
|---|---|---|---|
| Output Type | Single | Output Voltage | 12V |
| Output Frequency | 50/60Hz | Input Voltage | 170-264Vac |
| Output Power | 150W | Warranty | 3 Years |
| Size | 251.5*46.5*30mm | Material | Aluminium |
| IP Level | IP20 For Indoor | OEM | Yes |
| Protection | Over-load, Over-voltage, Over-current, Short-circuit | Type | Constant Voltage |
| High Light | Dimming 150W LED Driver, PWM 150W LED Driver, LED Power Supply 10V | ||
Customer Questions & Answers
You can tick the products you need and communicate with us in the message board.

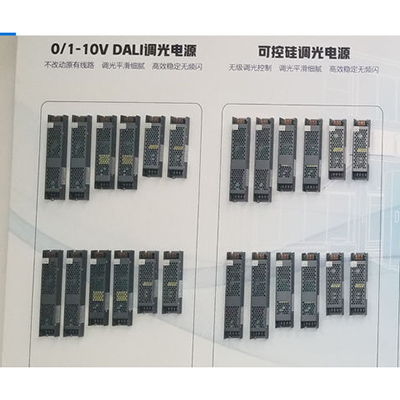

| MODEL | Dimming Mode | Type | Power | Input Voltage | Output Voltage | Output Current | Size | |
|---|---|---|---|---|---|---|---|---|
| KS-60TGL-12 | 0-10V PWM Dimming | Constant Voltage | 60W | AC 170-264V | DC 12V | 5A | 182*46.5*30mm | |
| KS-60TGL-24 | 0-10V PWM Dimming | Constant Voltage | 60W | AC 170-264V | DC 24V | 2.5A | 182*46.5*30mm | |
| KS-100TGL-12 | 0-10V PWM Dimming | Constant Voltage | 100W | AC 170-264V | DC 12V | 8.3A | 219*46.5*30mm | |
| KS-100TGL-24 | 0-10V PWM Dimming | Constant Voltage | 100W | AC 170-264V | DC 24V | 4.17A | 219*46.5*30mm | |
| KS-150TGL-12 | 0-10V PWM Dimming | Constant Voltage | 150W | AC 170-264V | DC 12V | 12.5A | 251.5*46.5*30mm | |
| KS-150TGL-24 | 0-10V PWM Dimming | Constant Voltage | 150W | AC 170-264V | DC 24V | 6.25A | 251.5*46.5*30mm | |
| KS-60TGK-12 | Traic Dimming | Constant Voltage | 60W | AC 170-264V | DC 12V | 5A | 182*46.5*30mm | |
| KS-60TGK-24 | Traic Dimming | Constant Voltage | 60W | AC 170-264V | DC 24V | 2.5A | 182*46.5*30mm | |
| KS-100TGK-12 | Traic Dimming | Constant Voltage | 100W | AC 170-264V | DC 12V | 8.3A | 219*46.5*30mm | |
| KS-100TGK-24 | Traic Dimming | Constant Voltage | 100W | AC 170-264V | DC 24V | 4.17A | 219*46.5*30mm | |
| KS-150TGK-12 | Traic Dimming | Constant Voltage | 150W | AC 170-264V | DC 12V | 12.5A | 251.5*46.5*30mm | |
| KS-150TGK-24 | Traic Dimming | Constant Voltage | 150W | AC 170-264V | DC 24V | 6.25A | 251.5*46.5*30mm |
