176-264VAC 100W Dimming Power Supply 12.5A 12V DC Dimmable LED Driver

Place of OriginChina
Brand NameWHOOSH
Model NumberHX-150TGL-12
Minimum Order Quantity50PCS
Packaging Details2PCS/Inner box, 150PCS/CTN
Delivery Time2-7 Days
Payment TermsT/T, Western Union, MoneyGram
Supply Ability20000PCS per day
Product Details
Output Current12.5AOutput TypeSingle
Output Voltage12VOutput Frequency50/60Hz
Input Voltage176-264VacOutput Power150W
Warranty3 YearsSize251.5×46.5×30mm
MaterialBlack Aluminum HousingIP LevelIP20for Indoor
OEMYesProtectionOver-load, Over-voltage, Over-current, Short-circuit
High Light12.5A 12V DC Dimmable LED Driver, 264VAC 100W Dimming Power Supply, 12.5A 100W Dimming Power Supply
Product Description
Product Specification
DC 0-12V Dimming LED power supply 12V 12.5A 100W for intelligent LED lighting projects
1) Sepcifications
ModelSize/mmInputOutputOutput CurrentWarranty
HX-150TGL-12251.5×46.5×30AC 176~264VDC 12V12.5A3 Years
HX-150TGL-24251.5×46.5×30AC 176~264VDC 24V6.25A3 Years
2) Input Characteristics

Input Voltage: AC 176-264V

Input Frequency: 50/60Hz

Input Current: 1.8A Max (full loaded at the lower limited of input voltage range)

Inrush Current: 60 Amps Max. Cold start at 240Vac input, with rated load and 25℃ ambient.

Ac Leakage Current: 3.5mA Max. At 264Vac input

3) Output Characteristics

1. Output Power

VoltageMin. LoadRated LoadPeak@10mSRated Output Power
DC 0-12V0A12.5A180W150W

2. Line Regulation

VoltageMin. LoadRated LoadLine RegulationLoad Regulation
DC 0-12V0A12.5A±3%±5%

3. Ripple and Noise

Under nominal voltage and nominal load,the ripple and noise are as follows when measure with Max.Bandwidth of 20MHz and Parallel 47uF/0.1uF,crossed connected at testing point.

VoltageRipple and Noise(Max.)
12V DC200mV p-p

4. Turn on delay time: 2Second 220Vac input and output Max.load.

5. Rise time:400 mS 220Vac input and output Max load.

6. Efficiency: 89% Min, At220Vac input voltage and full load calculation efficiency.

7. Overshoot: 5% Max.When power supply at turn or turn off.

4) Protection Functions

1. Short circuit protection: Auto recovered when short circuit faults remove.

2. Over Voltage Protection: Hiccup mode

3. Over load protection: Auto recovered when over current faults remove.

5) Test

Drop test, Salt Spray Test, Surge test, Ageing test, lightning test, Temperature Variation test etc.

6)  Safety Requirement

1. Safety Standard: Safety: Design by IEC60950 standard.

Primary to secondary:1200Vac/10mA/60S for type test.
Primary to case:1200Vac/10mA/60S for type test.
Secondary to case:300Vac/10mA/60S for type test.

3. Iusulation resistance:Primary to secondary:10MΩ min at 500V DC.

7) EMI Requirement

Designed according to the following standards:

1. FCC class B rules

2. EN55022 class B rules

3. GB9254-1998,GB17625.1-2003

8) Structure
9) OEM

Customize label and Inner box

10) Packing details

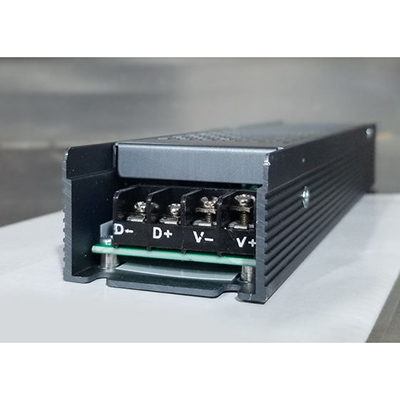

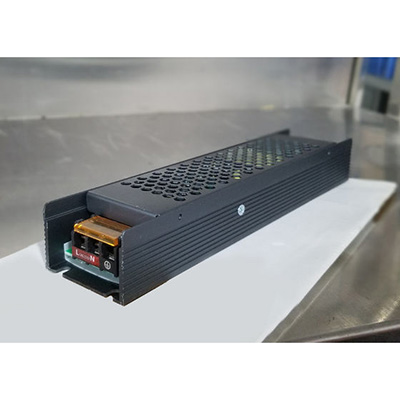

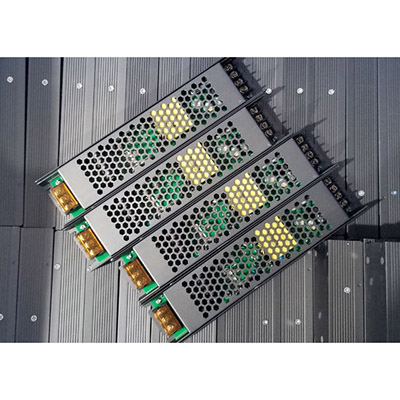

11) More product pictures


Factory Capacibility
1. Professional manufacturer

17 Years experience,  10,000 square meters factory, 400+ employees,  8 production lines

2. Scientific Management

ISO9001:2015 Quality Management System Certified, 7S administration

3. Independent R&D teams

10+ Engineer teams, innovative and independent R&D ability

4. Advanced equipment

SMT plant,  wave-soldering machine,  Semi-auto assembling, EMC lab, Test Lab, Ageing room etc.
