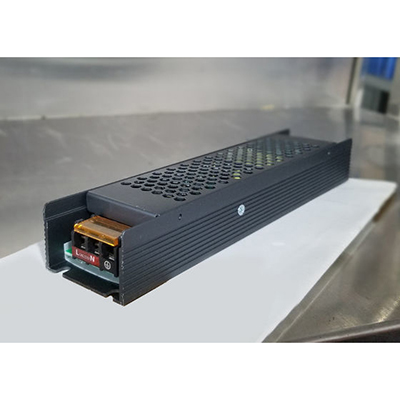

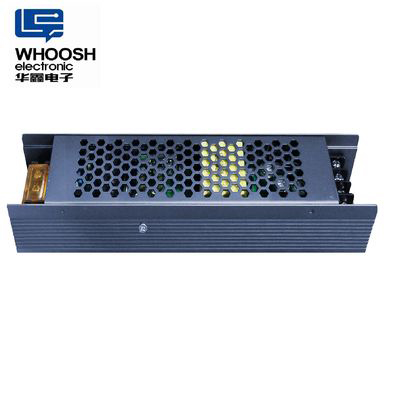

60W 5A Dimming Power Supply Dimmable 12V Transformer 180*46.5*30mm


Place of OriginChina
Brand NameWHOOSH
CertificationCE
Model NumberHX-60TGL-12
Minimum Order Quantity50PCS
PriceUS$1-15
Packaging Details2PCS/Inner box, 150PCS/CTN
Delivery Time2-7 Days
Payment TermsT/T, Western Union, MoneyGram
Supply Ability20000PCS per day
Product Details
Output Current5AOutput TypeSingle
Output Voltage12VOutput Frequency50/60Hz
Input Voltage176-264VacOutput Power60W
Warranty3 YearsSize180×46.5×30mm
MaterialBlack Aluminum HousingIP LevelIP20 For Indoor
OEMYesProtectionOver-load, Over-voltage, Over-current, Short-circuit
High Light

180*46.5*30mm Dimmable 12V Transformer

,

180*46.5*30mm Dimming Power Supply

,

60W 5A Dimming Power Supply

Product Description
Product Specification
DIMMING POWER SUPPLY Dimmable LED power supply 12V60W for Indoor LED lighting
1) Sepcifications
ModelSize/mmInputOutputOutput CurrentWarranty
HX-60TGL-12180×46.5×30AC 176~264VDC 12V5A3 Years
HX-60TGL-24180×46.5×30AC 176~264VDC 24V2.5A3 Years
2) Input Characteristics

Input Voltage: AC 176-264V

Input Frequency: 50/60Hz

Input Current: 1.8A Max (full loaded at the lower limited of input voltage range)

Inrush Current: 60 Amps Max. Cold start at 240Vac input, with rated load and 25℃ ambient.

Ac Leakage Current: 3.5mA Max. At 264Vac input

3) Output Characteristics

1. Output Power

VoltageMin. LoadRated LoadPeak@10mSRated Output Power
DC 0-12V0A5A72W60W

2. Line Regulation

VoltageMin. LoadRated LoadLine RegulationLoad Regulation
DC 0-12V0A5A±3%±5%

3. Ripple and Noise

Under nominal voltage and nominal load,the ripple and noise are as follows when measure with Max.Bandwidth of 20MHz and Parallel 47uF/0.1uF,crossed connected at testing point.

VoltageRipple and Noise(Max.)
12V DC200mV p-p

4. Turn on delay time: 2Second Max.at 220Vac input and output Max.load.

5. Rise time:400 mS Max.at 220Vac input and output Max load.

6. Efficiency: 89% Min, At220Vac input voltage and full load calculation efficiency.

7. Overshoot: 5% Max.When power supply at turn or turn off.

4) Protection Functions

1. Short circuit protection:   auto recovered when short circuit faults remove.

2. Over Voltage Protection:  Hiccup mode

3. Over load protection:   auto recovered when over current faults remove.

5) Test

Drop test, Salt Spray Test, Surge test, Ageing test, lightning test, Temperature Variation test etc.

6)  Safety Requirement

1. Safety Standard: Safety: Design by IEC60950 standard.

2. DIELECTRIC STRENGTH Hi-Pot:
Primary to secondary:1200Vac/10mA/60S for type test.
Primary to case:1200Vac/10mA/60S for type test.
Secondary to case:300Vac/10mA/60S for type test.

3. Iusulation resistance:Primary to secondary:10MΩ min at 500V DC.

7) EMI Requirement

Designed according to the following standards:

1. FCC class B rules

2. EN55022 class B rules

3. GB9254-1998,GB17625.1-2003

8) OEM

Customize label and Inner box

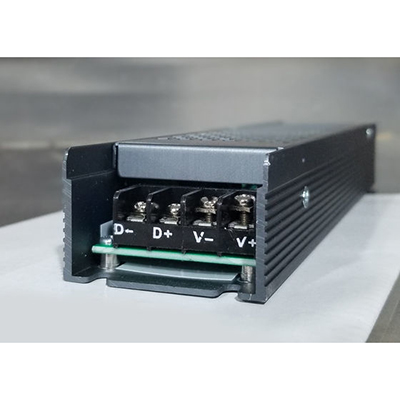

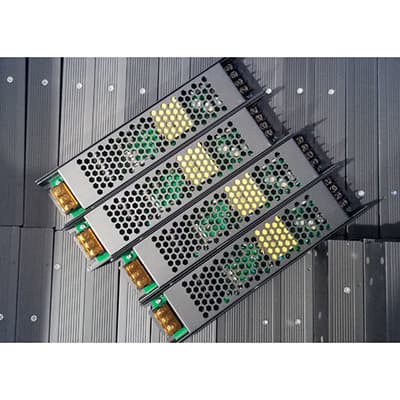

9) More product pictures

pic-1


Factory Capacibility
1. Professional manufacturer

17 Years experience,  10,000 square meters factory, 400+ employees,  8 production lines

2. Scientific Management

ISO9001:2015 Quality Management System Certified, 7S administration

3. Independent R&D teams

10+ Engineer teams, innovative and independent R&D ability

4. Advanced equipment

SMT plant,  wave-soldering machine,  Semi-auto assembling, EMC lab, Test Lab, Ageing room etc.

pic-4
