WHOOSH Dimmable LED Power Supply 60W 60 Amps Driver LED 12V Dimmable
| Place of Origin | China |
|---|---|
| Brand Name | WHOOSH |
| Certification | CE |
| Model Number | HX-60TGL-12 |
| Minimum Order Quantity | 50PCS |
| Price | US$1-15 |
| Packaging Details | 2PCS/Inner box, 150PCS/CTN |
| Delivery Time | 2-7 Days |
| Payment Terms | T/T, Western Union, MoneyGram |
| Supply Ability | 20000PCS per day |
Product Description
Product Specification
Dimmable LED power supply 60W for intelligent LED lighting projects
1) Sepcifications
| Model | Size/mm | Input | Output | Output Current | Warranty |
| HX-60TGL-12 | 180×46.5×30 | AC 176~264V | DC 12V | 5A | 3 Years |
| HX-60TGL-24 | 180×46.5×30 | AC 176~264V | DC 24V | 2.5A | 3 Years |
2) Input Characteristics
Input Voltage: AC 176-264V
Input Frequency: 50/60Hz
Input Current: 1.8A Max (full loaded at the lower limited of input voltage range)
Inrush Current: 60 Amps Max. Cold start at 240Vac input, with rated load and 25℃ ambient.
Ac Leakage Current: 3.5mA Max. At 264Vac input
3) Output Characteristics
1. Output Power
| Voltage | Min. Load | Rated Load | Peak@10mS | Rated Output Power |
| DC 0-12V | 0A | 5A | 72W | 60W |
2. Line Regulation
| Voltage | Min. Load | Rated Load | Line Regulation | Load Regulation |
| DC 0-12V | 0A | 5A | ±3% | ±5% |
3. Ripple and Noise
Under nominal voltage and nominal load,the ripple and noise are as follows when measure with Max.Bandwidth of 20MHz and Parallel 47uF/0.1uF,crossed connected at testing point.
| Voltage | Ripple and Noise(Max.) |
| 12V DC | 200mV p-p |
4. Turn on delay time: 2Second Max.at 220Vac input and output Max.load.
5. Rise time:400 mS Max.at 220Vac input and output Max load.
6. Efficiency: 89% Min, At220Vac input voltage and full load calculation efficiency.
7. Overshoot: 5% Max.When power supply at turn or turn off.
4) Protection Functions
1. Short circuit protection: auto recovered when short circuit faults remove.
2. Over Voltage Protection: Hiccup mode
3. Over load protection: auto recovered when over current faults remove.
5) Test
Drop test, Salt Spray Test, Surge test, Ageing test, lightning test, Temperature Variation test etc.
6) Safety Requirement
1. Safety Standard: Safety: Design by IEC60950 standard.
2. DIELECTRIC STRENGTH Hi-Pot:
Primary to secondary:1200Vac/10mA/60S for type test.
Primary to case:1200Vac/10mA/60S for type test.
Secondary to case:300Vac/10mA/60S for type test.
3. Iusulation resistance:Primary to secondary:10MΩ min at 500V DC.
7) EMI Requirement
Designed according to the following standards:
1. FCC class B rules
2. EN55022 class B rules
3. GB9254-1998,GB17625.1-2003
8) OEM
Customize label and Inner box

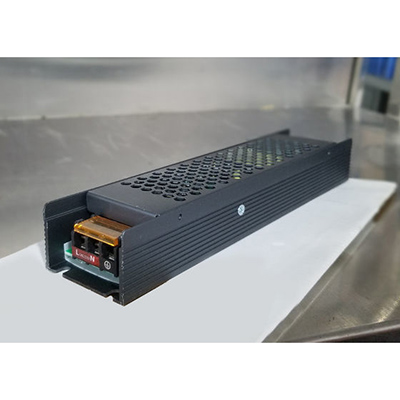

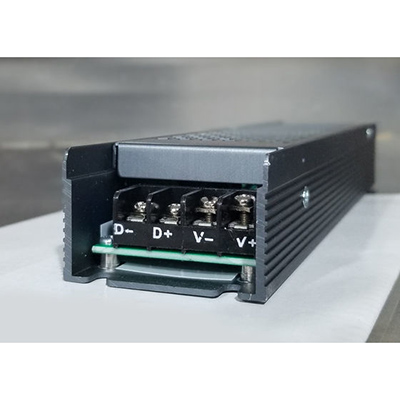

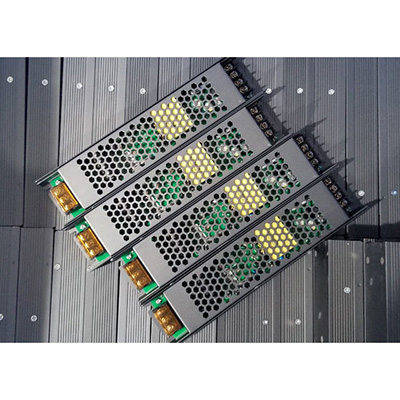

9) More product pictures
Factory Capacibility
1. Professional manufacturer
17 Years experience, 10,000 square meters factory, 400+ employees, 8 production lines
2. Scientific Management
ISO9001:2015 Quality Management System Certified, 7S administration
3. Independent R&D teams
10+ Engineer teams, innovative and independent R&D ability
4. Advanced equipment
SMT plant, wave-soldering machine, Semi-auto assembling, EMC lab, Test Lab, Ageing room etc.
Product Details
| Output Current | 5A | Output Type | Single |
|---|---|---|---|
| Output Voltage | 12V | Output Frequency | 50/60Hz |
| Input Voltage | 176-264Vac | Output Power | 60W |
| Warranty | 3 Years | Size | 180×46.5×30mm |
| Material | Black Aluminum Housing | IP Level | IP20 For Indoor |
| OEM | Yes | Protection | Over-load, Over-voltage, Over-current, Short-circuit |
| High Light | WHOOSH Dimmable LED Power Supply, 60W Driver LED 12V Dimmable, 60Amps Driver LED 12v Dimmable | ||
