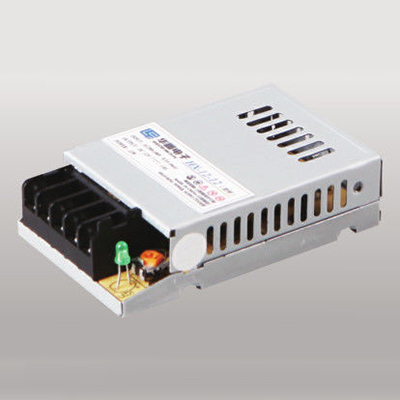

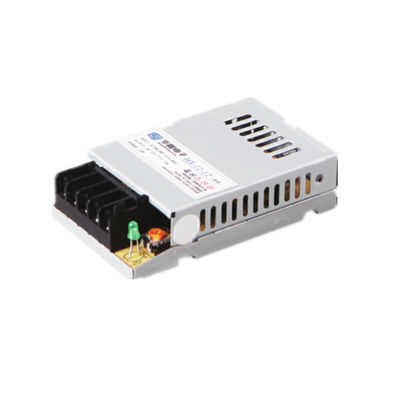

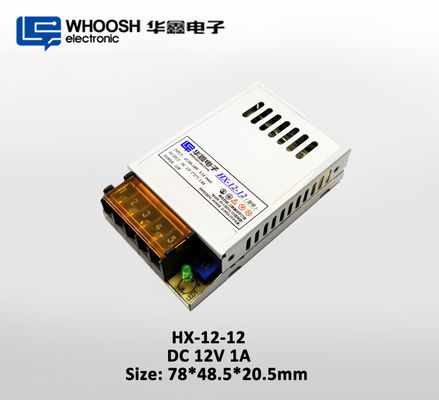

Universal Mini IP20 indoor LED Light Power Supply DC12V 1A 12W SMPS For LED Lighting and mini lighting characters

WHOOSH Universal AC Input DC 12V 1A SMPS Small Size 12W LED Light Power Supply

Advantages

* AC input 100-240V, 50/60Hz

* DC output 12V 1A 12W

* Efficiency: >77%

* IP20 indoor use, 100% OEM compatible, 2 years warranty;

* Constant voltage, single input and output design;

* Workable from -20 degree to 60 degree;

* Separated level for thermal dissipation;

* Protections: short circuit, over load and over voltage;

* Defective rate is less than 1% in 2 years.

* 100% full load burn-in test before delivery;

* NO MOQ, regular stock, quick delivery;

* Application: LED Sign, LED Advertising, LED Illumination, etc.

1. Output Characteristics

1.1 Output Power

1.2 Line Regulation

1.3 Ripple and Noise

Under nominal voltage and nominal load,the ripple and noise are as follows when measure with Max.Bandwidth of 20MHz and Parallel 47uF/0.1uF,crossed connected at testing point.

Turn on delay time: 2Second Max.at 220Vac input and output Max.load.

Rise time:40 mS Max.at 220Vac input and output Max load.

Overshoot: 5% Max.When power supply at turn or turn off.

2 Protection Functions

2.1 Short circuit protection: auto recovered when short circuit faults remove.

2.2 Over current Protection: auto recovered when over current faults remove.

2.3 Over load protection: auto recovered when over current faults remove.

3 Test

Drop test

4 Safety Requirement

4.1 Safety Standard: Safety: Design by IEC60950 standard.

4.2 DIELECTRIC STRENGTH Hi-Pot:

Primary to secondary:1200Vac/10mA/60S for type test.
Primary to case:1200Vac/10mA/60S for type test.

4.3 Iusulation resistance:Primary to secondary:10MΩ min at 500V DC.

5 EMI Requirement

Designed according to the following standards:

5.1 FCC class B rules
5.2 EN55022 class B rules
5.3 GB9254-1998,GB17625.1-2003
