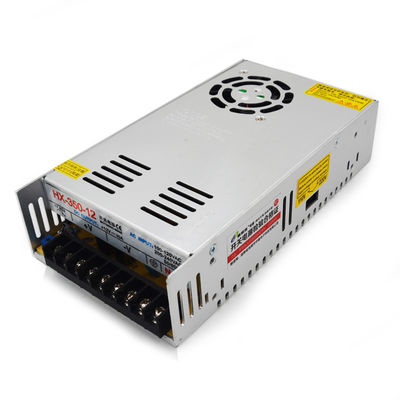

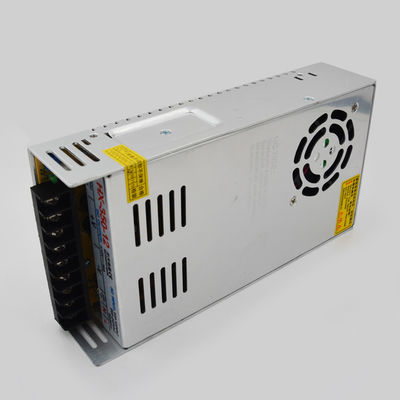

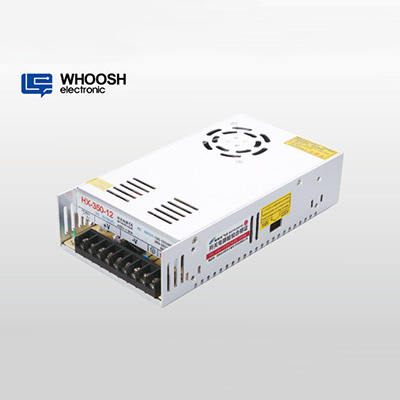

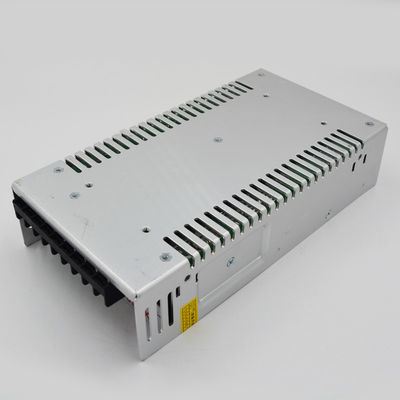

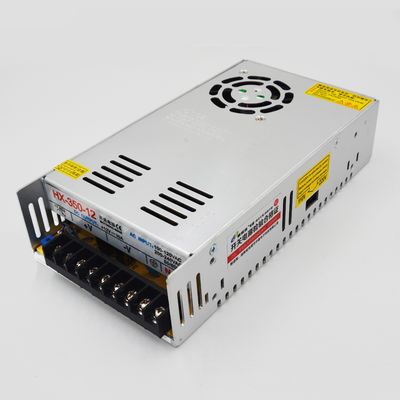

Input 110V/220V Switch DC 12V 30A Universal LED Power Supply AC To DC LED Driver 350W, LED light power supply 12V 30A


Place of OriginChina
Brand NameWHOOSH
CertificationCE
Model NumberHX-350-12
Minimum Order Quantity1
PricePls contact us for more info, thank you
Packaging DetailsPack in a brown carton outside and a box per piece inside. (Or negotiate when order).
Delivery Time2-7 days
Payment TermsT/T, Western Union, PayPal, or negotiate when order
Supply Ability20,000pcs per day
Product Details
InputAC 110/220V, 50/60HzOutputDC 12V 30A 350W
Warranty2 YearsIP LevelIP20 Indoor
HousingAluminium HousingOEMYES
ProtectionsShort Circuit, Over Load, Over VoltageWorking Temperature-20~40°C

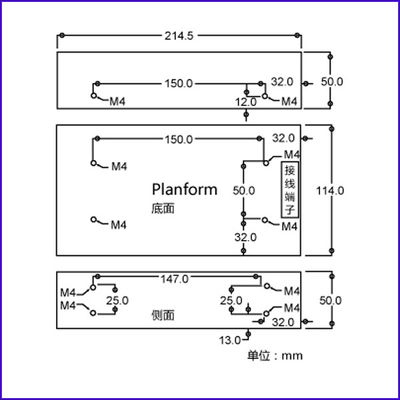

TypeConstant Voltage, Single Output. Non DimmableSize214.5*114*50mm
High Light14.6A Universal LED Power Supply, 350W AC To DC LED Driver, Switchable 14.6A Universal LED Power Supply
Product Description

Switchable Indoor IP20 Universal AC Input DC Output 350W LED Light Power Supply

Input 110V/220V Switch DC 12V 30A Universal LED Power Supply AC To DC LED Driver 350W, LED light power supply 12V 30A

Advantages

* AC input 110/220V, 50/60Hz

* DC output 12V  30A 350W

* Efficiency: >85%

* IP20 indoor use, 100% OEM compatible, 2 years warranty;

* Constant voltage, single input and output design;

* Workable from -20 degree to 60 degree;

* Separated level for thermal dissipation;

* Protections: short circuit, over load and over voltage;

* Defective rate is less than 1% in 2 years.

* 100% full load burn-in test before delivery;

* NO MOQ, regular stock, quick delivery;

* Application: LED Sign, LED Advertising, LED Illumination, etc.

pic-1

pic-2

1. Output Characteristics

1.1 Output Power

VoltageMin. LoadRated LoadPeak@10mSRated Output Power
DC 12V0A30A420W350W

1.2 Line Regulation

VoltageMin. LoadRated LoadLine RegulationLoad Regulation
DC 12V0A30A±3%±5%

1.3 Ripple and Noise

Under nominal voltage and nominal load,the ripple and noise are as follows when measure with Max.Bandwidth of 20MHz and Parallel 47uF/0.1uF,crossed connected at testing point.

VoltageRipple and Noise(Max.)
12V DC200mV p-p

1.4 Turn on delay time: 2Second Max.at 220Vac input and output Max.load.

1.5 Rise time:40 mS Max.at 220Vac input and output Max load.

1.6 Overshoot: 5% Max.When power supply at turn or turn off.

2 Protection Functions

2.1 Short circuit protection: auto recovered when short circuit faults remove.

2.2 Over current Protection: auto recovered when over current faults remove.

2.3 Over load protection: auto recovered when over current faults remove.

Test: Drop test
4 Safety Requirement

4.1 Safety Standard: Safety: Design by IEC60950 standard.

4.2 DIELECTRIC STRENGTH Hi-Pot:
Primary to secondary:1200Vac/10mA/60S for type test.
Primary to case:1200Vac/10mA/60S for type test.

4.3 Iusulation resistance: Primary to secondary:10MΩ min at 500V DC.

5 EMI Requirement

Designed according to the following standards:
5.1 FCC class B rules
5.2 EN55022 class B rules
5.3 GB9254-1998,GB17625.1-2003

Related Products

undefined

WHOOSH Indoor Power Supply Product List (IP20, 2 years warranty)
Model NameOutput DC PowerSize(mm)MOQ/PackingCarton Size(mm)G.W/ctnInput AC Power
HX-6-126W12V 0.5A69*30*20288pcs/carton456*208*24013kg200~240V AC 50/60Hz
HX-12-1212W12V 1A78*48.5*20.5216pcs/carton327*267*24413100~240V AC 50/60Hz
HX-25-1225W12V 2A85*58*37.580pcs/carton380*250*28311100~240V AC 50/60Hz
HX-35-1235W12V 2.9A111*78*3748pcs/carton380*250*28312100~240V AC 50/60Hz
HX-60B-1260W12V 5A129*98*4248pcs/carton430*345*33018100~240V AC 50/60Hz
HX-60-1260W12V 5A159*95*4248pcs/carton430*345*33018100~240V AC 50/60Hz
HX-75-1275W12V 6.25A159*98*4248pcs/carton430*345*33018100~240V AC 50/61Hz
HX-100-12100W12V 8.3A159*98*4236pcs/carton430*345*33018100~240V AC 50/60Hz
HX-120-12120W12V 10A199*98*4236pcs/carton430*320*33519110/220V AC 50/60Hz
HX-150-12150W12V 12.5A199*98*5036pcs/carton435*360*34020110/220V AC 50/60Hz
HX-200A-12200W12V 16.7A199*110*5024pcs/carton365*245*43016200~240V AC 50/60Hz
HX-250A-12250W12V 20A199*110*5024pcs/carton365*245*43016200~240V AC 50/60Hz
HX-350-12350W12V 29A214.5*114*5024pcs/carton480*245*38023110/220V AC 50/60Hz
HX-400C-12400W12V 33A261*103.5*6524pcs/carton455*285*45523200~240V AC 50/60Hz
HX-500-12500W12V 41.5A241*124*6518pcs/carton455*285*45520200~240V AC 50/60Hz
--By 6 steps, Whoosh Power Supply Ensures Stable Quality
undefined

pic-6

Packaging & Shipping
--Regular packing

Pack in a big brown carton outside and a box or a bubble bag per piece inside. (Or negotiate when order).

pic-7

--Shipping

pic-8

Company Information

Hunan Huaxin (WHOOSH) Electronic Technology Co., Ltd.has specialized in LED AC to DC power supply manufacturing since 2004, located in Hunan province, in the central south of China. We have 6 production lines and 400 people in factory with 10,000 square meter, including the R&D team.

We have manufactured all kinds of LED power supply used for LED Sign, LED Advertising, LED Illumination, LED Screen, LED lightbox; CCTV Device, Industial Automation Facility, Electronic Communication Device, Medical Care Equipment, etc.

WHOOSH has passed ISO9001:2015 (certified by SGS) Quality Management System, Korea KC certification, EU CB Certification, CE, ROHS, CCC, EMS, LVD, IP67 Waterproof Level Certifications etc.

What's more, defective rate is less than 1% within 2 years.

pic-9

pic-10

pic-11

--We are on the exhibitions!

Each year we have 3-4 domestic exhibitions (ISLE, SIGN CHINA, SHANGHAI LIGHT EXPO etc.) and 2-3 overseas exhibitions ( Asian, Middle East etc.)

pic-12

pic-12

--Honor & Certifications:

ISO9001:2015 (certified by SGS) Quality Management System, Korea KC certification, EU CB Certification, CE, ROHS, CCC, EMS, LVD, IP67 Waterproof Level Certifications etc.

pic-14

FAQ

Q: Can I get samples?
A: Yes, 1pc is available if needed.

Q: What’s your MOQ?
A: Normally the MOQ for commercial order is 1 carton for each kind of product.
However, 1pc can be available to support for your trail order, welcome to inquiry.

Q: Is there any discount?
A: Of course. Price is based on your quantity. We are committed to supplying best price for every customer.

Q: How about delivery time?
A: 1-25days which depends on detail items and quantity.

Exporting port:Guangzhou, Shenzhen, Shanghai, Yiwu, Lianyungang, Tashkent, etc. Guangzhou is the nearest port.

After-sales service:

A strong factory since 2004 and 400 employees, top 5 biggest manufacturer in China to support the aftersales.

We will always behind you to support you with less than 1% natural defective rate.

Payment term:T/T, Western Union, PayPal, or negotiate when order.

Any needs, we are always here for you.
