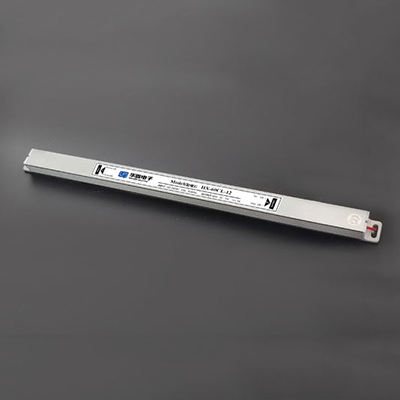

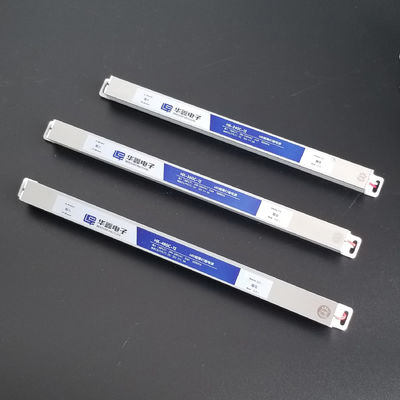

15mm Slim 12V DC LED Driver 3A LED Power Supply 36W 293*18*15.5MM
| Place of Origin | Hunan, China |
|---|---|
| Brand Name | HUA XIN |
| Certification | CE, CCC, ISO9001:2015, BIS |
| Model Number | HX-36GC-12 |
| Minimum Order Quantity | 336PCS/CTN |
| Price | Get the latest prices |
| Packaging Details | 336PCS/CTN, G.W: 19.5KG/CTN |
| Delivery Time | Regular stock for quick delivery |
| Payment Terms | T/T |
| Supply Ability | 20000PCS/DAY, 400+Employees, 8 production lines |
Product Description
15mm thick Slim 12V LED Driver, DC12V 3A Slim LED Power Supply 36W For LED strips and LED lighting, 3 years warranty
Product Name
18mm wide 15mm thick Ultra Slim LED Driver 12V/24V 18W 24W 36W 48W 60W 72W 100W For LED light box and mini characters
15mm thick Slim 12V LED Driver, DC 12V 3A Slim LED Power Supply For LED strips and LED lighting, 3 years warranty
1) Sepcifications
| Model | Size/mm | Input | Output | Output Current | Warranty |
| HX-36GC-12 | 293×18×15.5 | AC 180~264V | DC 12V | 3A | 3 Years |
| HX-36GC-24 | 293×18×15.5 | AC 180~264V | DC 24V | 1.5A | 3 Years |
2) Input Characteristics
Input Voltage: AC 180-264V
Input Frequency: 50/60Hz
Input Current: 0.6A Max (full loaded at the lower limited of input voltage range)
Inrush Current: 50 Amps Max. Cold start at 240Vac input, with rated load and 25℃ ambient.
Ac Leakage Current: 0.25mA Max. At 240Vac input
3) Output Characteristics
1. Output Power
| Voltage | Min. Load | Rated Load | Peak@10mS | Rated Output Power |
| DC 12V | 0A | 3A | 43.5W | 36W |
2. Line Regulation
| Voltage | Min. Load | Rated Load | Line Regulation | Load Regulation |
| DC 12V | 0A | 3A | ±3% | ±5% |
3. Ripple and Noise
Under nominal voltage and nominal load,the ripple and noise are as follows when measure with Max.Bandwidth of 20MHz and Parallel 47uF/0.1uF,crossed connected at testing point.
| Voltage | Ripple and Noise(Max.) |
| 24V DC | 300mV p-p |
4. Turn on delay time: 2Second Max.at 220Vac input and output Max.load.
5. Rise time:400 mS Max.at 220Vac input and output Max load.
6. Efficiency: 86%Min, At220Vac input voltage and full load calculation efficiency.
7. Overshoot: 10% Max.When power supply at turn or turn off.
4) Protection Functions
1. Short circuit protection: auto recovered when short circuit faults remove.
2. Over Voltage Protection: lock when over voltage, must close and restart AC Source.
3. Over load protection: auto recovered when over current faults remove.
5) Test
Drop test, Salt Spray Test, Surge test, Ageing test, lightning test, Temperature Variation test etc.
6) Safety Requirement
1. Safety Standard: Safety: Design by IEC60950 standard.
2. DIELECTRIC STRENGTH Hi-Pot:
Primary to secondary:1200Vac/10mA/60S for type test.
Primary to case:1200Vac/10mA/60S for type test.
Secondary to case:300Vac/10mA/60S for type test.
3. Iusulation resistance:Primary to secondary:10MΩ min at 500V DC.
7) EMI Requirement
Designed according to the following standards:
1. FCC class B rules
2. EN55022 class B rules
3. GB9254-1998,GB17625.1-2003
8) Structurer
9) OEM: Customize label and Inner box
10) Packing details
11) Complete Ultra slim HX-GC/CL Series
| Model | Size L*W*H | Power | Input | Output | Cooling | Waterproof Level | Warranty | PCS/CTN | CTN Size/ CM | G.W (KG)/CTN |
| HX-24GC-12/24 | 271*18*15.5 | 24W | AC 200-240V | DC 12V 2A DC 24V 1A | No fan | IP43 For Indoor | 3 Years | 168 | 35*33*30 | 19.5 |
| HX-36GC-12/24 | 293*18*15.5 | 36W | AC 200-240V | DC 12V 3A DC 24V 1.5A | No fan | IP43 For Indoor | 3 Years | 168 | 35*33*30 | 20.3 |
| HX-48GC-12/24 | 293*18*15.5 | 48W | AC 200-240V | DC 12V 4A DC 24V 2A | No fan | IP43 For Indoor | 3 Years | 168 | 35*33*30 | 20.5 |
| HX-60CL-12/24 | 353*18*15.5 | 60W | AC 200-240V | DC 12V 5A DC 24V 2.5A | No fan | IP43 For Indoor | 3 Years | 96 | 35*33*30 | 19.5 |
| HX-72CL-12/24 | 293*18*15.5 | 72W | AC 200-240V | DC 12V 6A DC 24V 3A | No fan | IP43 For Indoor | 3 Years | 150 | 35*33*30 | 20.3 |
| HX-100CL-12/24 | 413*18*15.5 | 100W | AC 200-240V | DC 12V 8.3A DC 24V 4.1A | No fan | IP43 For Indoor | 3 Years | 150 | 35*33*30 | 20.5 |
Factory Capacibility
1. Professional manufacturer:17 Years experience, 10,000 square meters factory, 400+ employees, 8 production lines
2. Scientific Management:ISO9001:2015 Quality Management System Certified, 7S administration
3. Independent R&D teams:10+ Engineer teams, innovative and independent R&D ability
4. Advanced equipment:SMT plant, wave-soldering machine, Semi-auto assembling, EMC lab, Test Lab, Ageing room etc.
12) Production capacity and quality control
| Our capacity | Built in 2004, 17 Years experience, | |||
| 10,000 square meters factory, 400+ employees, | ||||
| 8 production lines, 20000pcs/day | ||||
| ISO9001:2015 Quality Management System Certified, 7S administration | ||||
| 50+ Engineer teams, innovative and independent R&D ability | ||||
| EMC lab, SMT plant, Advanced machines and test equipment | ||||
| Drop test, high-low temperature test, Salt spray test, surge resistance test, Ageing test,Functional test, MTBF test etc. | ||||
Product Details
| Output Current | 3A | Output Type | Single |
|---|---|---|---|
| Output Voltage | 24Vdc | Output Frequency | 50/60Hz |
| Input Voltage | 180-264Vac | Output Power | 36W |
| Warranty | 3 Years | Size | 293×18×15.5MM |
| Protection | Over-load, Over-voltage, Over-current, Short-circuit | Type | Constant Voltage Type |
| Material | Aluminum | ||
| High Light | 15mm Slim 12V DCLED Driver, 293*18*15.5MM LED Power Supply 36W, 3A Slim 12V DC LED Driver | ||
Customer Questions & Answers
You can tick the products you need and communicate with us in the message board.
| MODEL | SIZE/(L×W×H) mm | AC INPUT | DC OUTPUT VOLT. | OUTPUT CURRENT | RATED POWER | COOLING | PCS/CTN | WARRANTY | |
|---|---|---|---|---|---|---|---|---|---|
| HX-18C-12 | 185×18×15.5 | 180-264VAC | DC 12V | 1..5A | 18W | NO FAN | 336 | 3 YEARS | |
| HX-24GC-12 | 271×18×15.5 | 180-264VAC | DC 12V | 2A | 24W | NO FAN | 336 | 3 YEARS | |
| HX-24GC-24 | 271×18×15.5 | 180-264VAC | DC 24V | 1A | 24W | NO FAN | 336 | 3 YEARS | |
| HX-36GC-12 | 293×18×15.5 | 180-264VAC | DC 12V | 3A | 36W | NO FAN | 168 | 3 YEARS | |
| HX-36GC-24 | 293×18×15.5 | 180-264VAC | DC 24V | 1.5A | 36W | NO FAN | 168 | 3 YEARS | |
| HX-48GC-12 | 293×18×15.5 | 180-264VAC | DC 12V | 4A | 48W | NO FAN | 168 | 3 YEARS | |
| HX-48GC-24 | 293×18×15.5 | 180-264VAC | DC 24V | 2A | 48W | NO FAN | 168 | 3 YEARS | |
| HX-60CL-12 | 353×18×15.5 | 180-264VAC | DC 12V | 5A | 60W | NO FAN | 96 | 3 YEARS | |
| HX-60CL-24 | 353×18×15.5 | 180-264VAC | DC 24V | 2.5A | 60W | NO FAN | 96 | 3 YEARS | |
| HX-72CL-12 | 413×18×15.5 | 180-264VAC | DC 12V | 6A | 72W | NO FAN | 156 | 3 YEARS | |
| HX-72CL-24 | 413×18×15.5 | 180-264VAC | DC 24V | 3A | 72W | NO FAN | 156 | 3 YEARS | |
| HX-100CL-12 | 413×18×15.5 | 180-264VAC | DC 12V | 8.3A | 100W | NO FAN | 156 | 3 YEARS | |
| HX-100CL-24 | 413×18×15.5 | 180-264VAC | DC 24V | 4.17A | 100W | NO FAN | 156 | 3 YEARS |
