HX-GC/CL Ultra Slim Series

Home > Products > Slim Power Supply > HX-GC/CL Ultra Slim Series

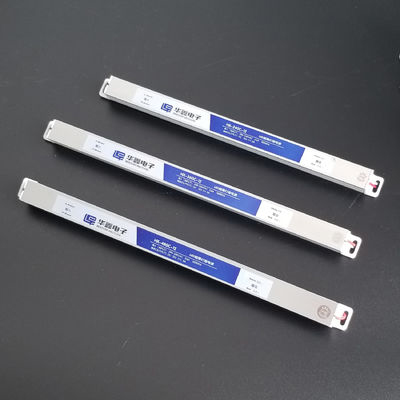

Indoor Slim LED Power Supply DC 24V 2.5A LED Power Supply 60W ip40


Place of OriginHunan, China
Brand NameHUA XIN
CertificationCE, CCC, ISO9001:2015, BIS
Model NumberHX-60CL-12/24
Minimum Order Quantity132PCS/CTN
PriceGet the latest prices
Packaging Details165PCS/CTN, G.W: 21.3KG/CTN
Delivery TimeRegular stock for quick delivery
Payment TermsT/T
Supply Ability20000PCS/DAY, 400+Employees, 8 production lines
Product Details
Output Current4.17AOutput Voltage24Vdc
Output Frequency50/60HzInput Voltage180-264Vac
Output Power100WWarranty3 Years
Size353*18*15.5MMProtectionOver-load, Over-voltage, Over-current, Short-circuit
TypeConstant Voltage TypeMaterialAluminum
High LightIndoor IP43 Slim LED Driver, 4.17A LED Power Supply 100W, IP43 LED Power Supply 100W


Product Description
DC 24V2.5A LED Driver with 3 years warranty for LED light,60W LED Driver for airport, metro LED Light box lighting
Product Name

* 18mm wide 15.5mm thick Ultra Slim LED Driver 12V/24V 18W 24W 36W 48W 60W 72W 100W For LED light box and mini characters

* WHOOSH Quality 15mm Slim LED Driver 24V 60W, 3 years warranty, MTBF 30000 hours, 24V 4.17A LED driver for led lighting

* Hua Xin Ultra Slim 24V2.5A LED Driver with 3 years warranty for LED light project, airport, metro LED Light box lighting

1) Sepcifications

Model

Size/mm

Input

Output

Output Current

Warranty

HX-60CL-12

353×18×15.5

AC180~264V

DC 12V

5A

3 Years

HX-60CL-24

353×18×15.5

AC180~264V

DC 24V

2.5A

3 Years

2) Input Characteristics

Input Voltage: AC 180-264V

Input Frequency: 50/60Hz

Input Current:0.8A Max (full loaded at the lower limited of input voltage range)

Inrush Current:50 Amps Max. Cold start at 240Vac input, with rated load and 25℃ ambient.

Ac Leakage Current:0.25mA Max. At 240Vac input

3) Output Characteristics

1. Output Power

Voltage

Min. Load

Rated Load

Peak@10mS

Rated Output Power

DC12V

0A

5A

72W

60W

DC24V

0A

2.5A

72W

60W

Voltage

Min. Load

Rated Load

Line Regulation

Load Regulation

DC12V

0A

5A

±3%

±5%

DC24V

0A

2.5A

±3%

±5%

2. Line Regulation

Voltage

Ripple and Noise(Max.)

12V DC

300mV p-p

24V DC

300mV p-p


3 Ripple and Noise

Under nominal voltage and nominal load,the ripple and noise are as follows when measure with Max.Bandwidth of 20MHz and Parallel47uF/0.1uF,crossed connected at testing point.

4. Turn on delay time: 2Second Max.at 220Vac input and output Max.load.

5. Rise time: 400 mS Max.at 220Vac input and output Max load.

6. Efficiency: 84%Min, At220Vac input voltage and full load calculation efficiency.

7. Overshoot: 10% Max.When power supply at turn or turn off.

4) Protection Functions

1. Short circuit protection: auto recovered when short circuit faults remove.

2. Over Voltage Protection: lock when over voltage, must close and restart AC Source.

3. Over load protection: auto recovered when over current faults remove.

5) Test

Drop test, Salt Spray Test, Surge test, Ageing test, lightning test, Temperature Variation test etc.

6) Safety Requirement

1. Safety Standard: Safety: Design by IEC60950 standard.

2. DIELECTRIC STRENGTH Hi-Pot:
Primary to secondary:1200Vac/10mA/60S for type test.
Primary to case:1200Vac/10mA/60S for type test.
Secondary to case:300Vac/10mA/60S for type test.

3. Iusulation resistance:Primary to secondary:10MΩ min at 500V DC.

7) EMI Requirement

Designed according to the following standards:
1. FCC class B rules
2. EN55022 class B rules
3. GB9254-1998,GB17625.1-2003

8) Structurer


9) OEM

Customize label and Inner box

10) Packing details
11) Complete Ultra slim HX-GC/CL Series

Model

Size L*W*H

Power

Input

Output

Cooling

Waterproof Level

Warranty

PCS/CTN

CTN Size/ CM

G.W (KG)/CTN

HX-24GC-12/24

271*18*15.5

24W

AC 200-240V

DC 12V 2A DC 24V 1A

No fan

IP43 For Indoor

3 Years

168

35*33*30

19.5

HX-36GC-12/24

293*18*15.5

36W

AC 200-240V

DC 12V 3A DC 24V 1.5A

No fan

IP43 For Indoor

3 Years

168

35*33*30

20.3

HX-48GC-12/24

293*18*15.5

48W

AC 200-240V

DC 12V 4A DC 24V 2A

No fan

IP43 For Indoor

3 Years

168

35*33*30

20.5

HX-60CL-12/24

353*18*15.5

60W

AC 200-240V

DC 12V 5A DC 24V 2.5A

No fan

IP43 For Indoor

3 Years

96

35*33*30

19.5

HX-72CL-12/24

293*18*15.5

72W

AC 200-240V

DC 12V 6A DC 24V 3A

No fan

IP43 For Indoor

3 Years

150

35*33*30

20.3

HX-100CL-12/24

413*18*15.5

100W

AC 200-240V

DC 12V 8.3A DC 24V 4.1A

No fan

IP43 For Indoor

3 Years

150

35*33*30

20.5

11) Production capacity and quality control

Our capacity

Built in 2004, 17 Years experience,

10,000 square meters factory, 400+ employees,

8 production lines, 20000pcs/day

ISO9001:2015 Quality Management System Certified, 7S administration

50+ Engineer teams, innovative and independent R&D ability

EMC lab, SMT plant, Advanced machines and test equipment

Drop test, high-low temperature test, Salt spray test, surge resistance test, Ageing test,Functional test, MTBF test etc.

 12)Shipping

13)Company Information

Hunan Huaxin (WHOOSH) Electronic Technology Co., Ltd.has specialized in LED AC to DC power supply manufacturing since 2004, located in Hunan province, in the central south of China. We have 6 production lines and 400 people in factory with 10,000 square meter, including the R&D team.

We have manufactured all kinds of LED power supply used for LED Sign, LED Advertising, LED Illumination, LED Screen, LED lightbox; CCTV Device, Industial Automation Facility, Electronic Communication Device, Medical Care Equipment, etc.

WHOOSH has passed ISO9001:2015 (certified by SGS) Quality Management System, Korea KC certification, EU CB Certification, CE, ROHS, CCC, EMS, LVD, IP67 Waterproof Level Certifications etc.

What's more, defective rate is less than 1% within 2 years.





--We are on the exhibitions!

Each year we have 3-4 domestic exhibitions (ISLE, SIGN CHINA, SHANGHAI LIGHT EXPO etc.) and 2-3 overseas exhibitions ( Asian, Middle East etc.)

--Honor & Certifications:

ISO9001:2015 (certified by SGS) Quality Management System, Korea KC certification, EU CB Certification, CE, ROHS, CCC, EMS, LVD, IP67 Waterproof Level Certifications etc.

--Honor & Certifications:

ISO9001:2015 (certified by SGS) Quality Management System, Korea KC certification, EU CB Certification, CE, ROHS, CCC, EMS, LVD, IP67 Waterproof Level Certifications etc.

FAQ

Q: Can I get samples?
A: Yes, 1pc is available if needed.

Q: What’s your MOQ?
A: Normally the MOQ for commercial order is 1 carton for each kind of product.
However, 1pc can be available to support for your trail order, welcome to inquiry.

Q: Is there any discount?
A: Of course. Price is based on your quantity. We are committed to supplying best price for every customer.

Q: How about delivery time?
A: 1-25days which depends on detail items and quantity.

Exporting port:Guangzhou, Shenzhen, Shanghai, Yiwu, Lianyungang, Tashkent, etc. Guangzhou is the nearest port.

After-sales service:

A strong factory since 2004 and 400 employees, top 5 biggest manufacturer in China to support the aftersales.

We will always behind you to support you with less than 1% natural defective rate.

Payment term:T/T, Western Union, PayPal, or negotiate when order.

Any needs, we are always here for you.


Customer Questions & Answers
    Did not match any questions!
You can tick the products you need and communicate with us in the message board.

MODELSIZE/(L×W×H) mmAC INPUTDC OUTPUT VOLT.OUTPUT CURRENTRATED POWERCOOLINGPCS/CTNWARRANTY
HX-18C-12185×18×15.5180-264VACDC 12V1..5A18WNO FAN3363 YEARS
HX-24GC-12271×18×15.5180-264VACDC 12V2A24WNO FAN3363 YEARS
HX-24GC-24271×18×15.5180-264VACDC 24V1A24WNO FAN3363 YEARS
HX-36GC-12293×18×15.5180-264VACDC 12V3A36WNO FAN1683 YEARS
HX-36GC-24293×18×15.5180-264VACDC 24V1.5A36WNO FAN1683 YEARS
HX-48GC-12293×18×15.5180-264VACDC 12V4A48WNO FAN1683 YEARS
HX-48GC-24293×18×15.5180-264VACDC 24V2A48WNO FAN1683 YEARS
HX-60CL-12353×18×15.5180-264VACDC 12V5A60WNO FAN963 YEARS
HX-60CL-24353×18×15.5180-264VACDC 24V2.5A60WNO FAN963 YEARS
HX-72CL-12413×18×15.5180-264VACDC 12V6A72WNO FAN1323 YEARS
HX-72CL-24413×18×15.5180-264VACDC 24V3A72WNO FAN1323 YEARS
HX-100CL-12413×18×15.5180-264VACDC 12V8.3A100WNO FAN1323 YEARS
HX-100CL-24413×18×15.5180-264VACDC 24V4.17A100WNO FAN1323 YEARS
