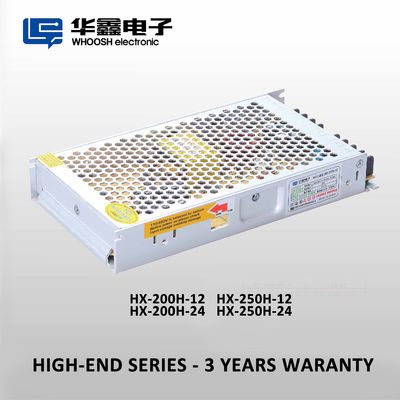

IP20 Indoor 16.7A Switching Mode Power Supply 200W 12V LED Strip Driver


Place of OriginChina
Brand NameWHOOSH
CertificationCE
Model NumberHX-200H-12
Minimum Order Quantity1
PriceUSD$10-10.5 /pcs
Packaging DetailsPack in a brown carton outside and a box per piece inside. (Or negotiate when order).
Delivery Time2-7 days
Payment TermsT/T, Western Union, PayPal, or negotiate when order
Supply Ability20,000pcs per day
Product Details
InputAC 110/240V, 50/60HzOutputDC 12V 16.7A 200W
Warranty3 YearsIP LevelIP20 Indoor
HousingAluminium HousingOEMYES
ProtectionsShort Circuit, Over Load, Over VoltageWorking Temperature-20~40°C
TypeConstant Voltage, Single Output. Non DimmableSize215*115*31mm
High Light16.7A Switching Mode Power Supply, IP20 Switching Mode Power Supply, IP20 Indoor 12V LED Strip Driver
Product Description

SMPS Switching Mode Power Supply DC Output 12V200W Slim Power Supply for LED Strips Lighting

Product Description
Advantages

* AC input 110/240V selectable, 50/60Hz

* DC output 12V 16.7A 200W

* Efficiency: >85%

* IP20 indoor use, 100% OEM compatible, 3 years warranty;

* Constant voltage, single input and output design;

* Workable from -20 degree to 60 degree;

* Separated level for thermal dissipation;

* Protections: short circuit, over load and over voltage;

* Defective rate is less than 1% in 2 years.

* 100% full load burn-in test before delivery;

* NO MOQ, regular stock, quick delivery;

* Application: LED Sign, LED Advertising, LED Illumination, etc.

1. Output Characteristics

1.1 Output Power

VoltageMin. LoadRated LoadPeak@10mSRated Output Power
DC 12V0A16.7A220W200W

1.2 Line Regulation

VoltageMin. LoadRated LoadLine RegulationLoad Regulation
DC 12V0A16.7A±3%±5%

1.3 Ripple and Noise

Under nominal voltage and nominal load,the ripple and noise are as follows when measure with Max.Bandwidth of 20MHz and Parallel 47uF/0.1uF,crossed connected at testing point.

VoltageRipple and Noise(Max.)
12V DC120mV p-p

1.4 Turn on delay time: 2 Seconds Max.at 220Vac input and output Max.load.

1.5 Rise time:400ms Max.at 220Vac input and output Max load.

1.6 Overshoot: 10% Max.When power supply at turn or turn off.

2. Protection Functions

2.1 Short circuit protection: auto recovered when short circuit faults remove.

2.2 Over current Protection: auto recovered when over current faults remove.

2.3 Over load protection: auto recovered when over current faults remove.

3. Test

Drop test

4. Safety Requirement

4.1 Safety Standard: Safety: Design by IEC60950 standard.

4.2 DIELECTRIC STRENGTH Hi-Pot:
Primary to secondary:1200Vac/10mA/60S for type test.
Primary to case:1200Vac/10mA/60S for type test.

4.3 Iusulation resistance:Primary to secondary:10MΩ min at 500V DC.

5. EMI Requirement

Designed according to the following standards:
5.1 FCC class B rules
5.2 EN55022 class B rules
5.3 GB9254-1998,GB17625.1-2003

pic-1

pic-2

Related Products

All 24V is available.

WHOOSH Indoor Ultrathin Power Supply Product List (IP20, 3 years warranty)
Model NameOutput DC PowerSize(mm)MOQ/PackingCarton Size(mm)G.W/ctnInput AC Power
HX-35H-1235W12V 2.91A104*82*30120pcs/carton365*345*37222kg100~240V, 50/60hz
HX-60H-1260W12V 5A104*82*30120pcs/carton365*345*37227100~240V, 50/60hz
HX-100H-12100W12V 8.33A134*97*3090pcs/carton435*370*32931100~240V, 50/60hz
HX-150H-12150W12V 12.5A164*97*3060pcs/carton365*343*32925110/220V, 50/60hz
HX-200H-12200W12V 16.7A215*115*3136pcs/carton459*378*23623110/220V, 50/60hz
HX-250H-12250W12V 20.8A215*115*3136pcs/carton459*378*23624110/220V, 50/60hz
HX-350H-12350W12V 29.1A215*115*3136pcs/carton459*378*23626110/220V, 50/60hz
HX-400H-12400W12V 33.3A215*115*3136pcs/carton459*378*23626110/220V, 50/60hz
--By 6 steps, Whoosh Power Supply Ensures Stable Quality:

pic-3

pic-6

Packaging & Shipping
--Regular packing

Pack in a big brown carton outside and a box or a bubble bag per piece inside. (Or negotiate when order).

pic-7

--Shipping

pic-8

Company Information

Hunan Huaxin (WHOOSH) Electronic Technology Co., Ltd.has specialized in LED AC to DC power supply manufacturing since 2004, located in Hunan province, in the central south of China. We have 6 production lines and 400 people in factory with 10,000 square meter, including the R&D team.

We have manufactured all kinds of LED power supply used for LED Sign, LED Advertising, LED Illumination, LED Screen, LED lightbox; CCTV Device, Industial Automation Facility, Electronic Communication Device, Medical Care Equipment, etc.

WHOOSH has passed ISO9001:2015 (certified by SGS) Quality Management System, Korea KC certification, EU CB Certification, CE, ROHS, CCC, EMS, LVD, IP67 Waterproof Level Certifications etc.

What's more, defective rate is less than 1% within 2 years.

pic-9

pic-10

pic-11

--We are on the exhibitions!

Each year we have 3-4 domestic exhibitions (ISLE, SIGN CHINA, SHANGHAI LIGHT EXPO etc.) and 2-3 overseas exhibitions ( Asian, Middle East etc.)

pic-12

pic-12

--Honor & Certifications:

ISO9001:2015 (certified by SGS) Quality Management System, Korea KC certification, EU CB Certification, CE, ROHS, CCC, EMS, LVD, IP67 Waterproof Level Certifications etc.

pic-14

FAQ

Q: Can I get samples?
A: Yes, 1pc is available if needed.

Q: What’s your MOQ?
A: Normally the MOQ for commercial order is 1 carton for each kind of product.
However, 1pc can be available to support for your trail order, welcome to inquiry.

Q: Is there any discount?
A: Of course. Price is based on your quantity. We are committed to supplying best price for every customer.

Q: How about delivery time?
A: 1-25days which depends on detail items and quantity.

Exporting port:Guangzhou, Shenzhen, Shanghai, Yiwu, Lianyungang, Tashkent, etc. Guangzhou is the nearest port.

After-sales service:

A strong factory since 2004 and 400 employees, top 5 biggest manufacturer in China to support the aftersales.

We will always behind you to support you with less than 1% natural defective rate.

Payment term:T/T, Western Union, PayPal, or negotiate when order.

Any needs, we are always here for you.
