180-264Vac Rainproof LED Power Supply 5Amp 12V 60W SMPS For LED neon


Place of OriginChina
Brand NameWHOOSH
CertificationCE
Model NumberHXF-60GB-12
Minimum Order Quantity50PCS
PriceUS$4-4.5
Packaging Details84PCS/CTN
Delivery Time2-7 Days
Payment TermsT/T, Western Union, MoneyGram
Supply Ability20000PCS per day
Product Details
Output Current5AOutput TypeSingle
Output Voltage12VOutput Frequency50/60Hz
Input Voltage180-264VacOutput Power60W
Warranty3 YearsSize128x73x41mm
MaterialAluminum HousingIP LevelIP62 For Outdoor
OEMYesProtectionOver-load, Over-voltage, Over-current, Short-circuit
High Light264Vac 60w LED power supply,12V 60W SMPS For LED Lighting,5Amp SMPS For LED Lighting
Product Description
Product Specification
Rainproof LED Power Supply 12V 60W SMPS for LED sign and lighting and strips
Highlights: Intelligent overload protection, constant voltage, constant current mode.
1) Basic Sepcifications
ModelSize/mmInputOutputOutput CurrentWarranty
HXF-60GB-12128x73x41AC 180~264VDC 12V5A3 Years
2) Input Characteristics

Input Voltage: AC 180-264V

Input Frequency: 50/60Hz

Input Current: 0.7A Max (full loaded at the lower limited of input voltage range)

Inrush Current: 60 Amps Max. Cold start at 240Vac input, with rated load and 25℃ ambient.

Ac Leakage Current: 3.5mA Max. At 240Vac input

3) Output Characteristics

1. Output Power

VoltageMin. LoadRated LoadPeak@10mSRated Output Power
DC 12V0A5A72W60W

2. Line Regulation

VoltageMin. LoadRated LoadLine RegulationLoad Regulation
DC 12V0A5A±3%±5%

3. Ripple and Noise

Under nominal voltage and nominal load,the ripple and noise are as follows when measure with Max.Bandwidth of 20MHz and Parallel 47uF/0.1uF,crossed connected at testing point.

VoltageRipple and Noise(Max.)
12V DC200mV p-p

4. Turn on delay time: 2 Seconds Max.at 220Vac input and output Max.load.

5. Rise time: 800 mS Max.at 220Vac input and output Max load.

6. Efficiency: 85% Min, At220Vac input voltage and full load calculation efficiency.

7. Overshoot: 8% Max.When power supply at turn or turn off.

4) Protection Functions:

1. Short circuit protection: auto recovered when short circuit faults remove.

2. Over current Protection: auto recovered when over current faults remove.

3. Over load protection: auto recovered when over current faults remove.

4. Over Voltage protection: locked down.  restart to recover.

5) Test:

Drop test, Salt Spray Test, Surge test, Ageing test, lightning test, Temperature Variation test etc.

6) Safety Requirement

1. Safety Standard: Safety: Design by IEC60950 standard.

2. DIELECTRIC STRENGTH Hi-Pot:
Primary to secondary:1200Vac/10mA/60S for type test.
Primary to case:1200Vac/10mA/60S for type test.

3. Iusulation resistance:Primary to secondary:10MΩ min at 500V DC.

7) EMI Requirement

Designed according to the following standards:

1. FCC class B rules

2. EN55022 class B rules

3. GB9254-1998,GB17625.1-2003

8) Load and Environment Temperature

pic-1

pic-2

9) Structurer

pic-3

10) OEM: Customize label and Inner box
11) Packing details:  84PCS/CTN

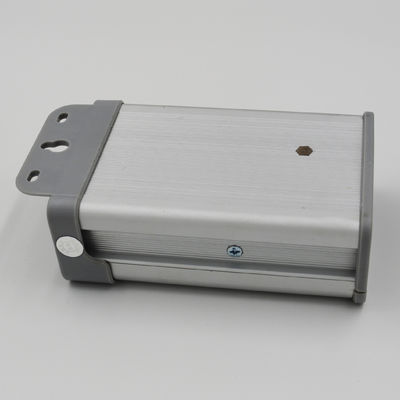

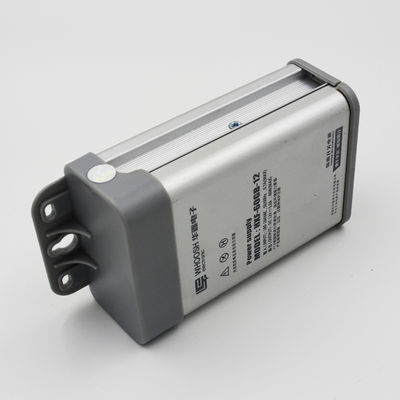

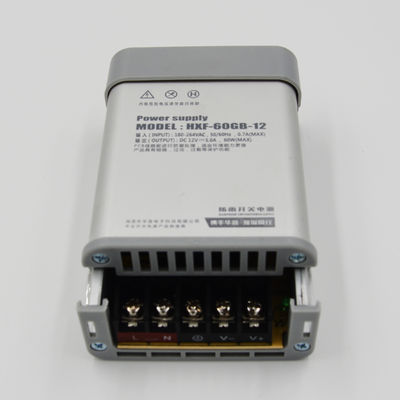

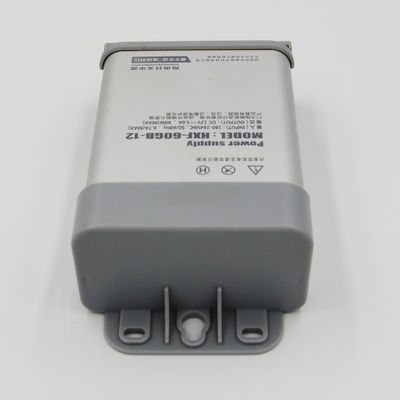

12) More product pictures

180-264Vac Rainproof LED Power Supply 5Amp 12V 60W SMPS For LED Lighting 3

GB-Series Rainproof Power Supply Series
ModelSize(mm)Efficiency(>)InputOutputPower
HXF-400GB-12201×115×55>85%180~264VAC12V/33.3A400W
HXF-400GB-24201×115×55>87%180~264VAC24V/16.7A400W
HXF-300GB-12198×100×50>85%180~264VAC12V/25A300W
HXF-200GB-12171.5×100×50>87%180~264VAC12V/16.7A200W
HXF-200GB-24171.5×100×50>85%180~264VAC12V/8.3A200W
HXF-150GB-12185.5×73×41>87%180~264VAC12V/12.5A150W
HXF-60GB-12128×73×41>85%180~264VAC12V/5A60W
Factory Capacibility
1. Professional manufacturer

17 Years experience,  10,000 square meters factory, 400+ employees,  8 production lines

2. Scientific Management

ISO9001:2015 Quality Management System Certified, 7S administration

3. Independent R&D teams

10+ Engineer teams, innovative and independent R&D ability

4. Advanced equipment

SMT plant,  wave-soldering machine,  Semi-auto assembling, EMC lab, Test Lab, Ageing room etc.

pic-4
