25A AC DC Transformer For LED Lights Waterproof LED Power Supply 12V 300W

Place of Origin	China
Brand Name	WHOOSH
Certification	CE
Model Number	HXF-300GB-12
Minimum Order Quantity	50PCS
Price	US$9-9.5
Packaging Details	48PCS/CTN
Delivery Time	2-7 Days
Payment Terms	T/T, Western Union, MoneyGram
Supply Ability	20000PCS per day

Inquiry

Product Description

Product Specification

AC/DC Rainproof LED Power Supply 12V Power Supply 300W for LED sign and lighting with Intelligent overload protection

Highlights

Intelligent overload protection, constant voltage, constant current mode.

1) Basic Sepcifications

Model	Size/mm	Input	Output	Output Current	Warranty
HXF-300GB-12	198x100x50	AC 180~264V	DC 12V	25A	3 Years

2) Input Characteristics

Input Voltage: AC 180-264V

Input Frequency: 50/60Hz

Input Current: 4A Max (full loaded at the lower limited of input voltage range)

Inrush Current: 100 Amps Max. Cold start at 240Vac input, with rated load and 25℃ ambient.

Ac Leakage Current: 3.5mA Max. At 240Vac input

3) Output Characteristics

1. Output Current≤30A

25A AC DC Transformer For LED Lights Waterproof LED Power Supply 12V 300W 0

2. Line Regulation

Voltage	Min. Load	Rated Load	Line Regulation	Load Regulation
DC 12V	0A	30A	±3%	±5%

3. Ripple and Noise

Under nominal voltage and nominal load,the ripple and noise are as follows when measure with Max.Bandwidth of 20MHz and Parallel 47uF/0.1uF,crossed connected at testing point.

Voltage	Ripple and Noise(Max.)
12V DC	200mV p-p

4. Turn on delay time: 1 Second Max.at 220Vac input and output Max.load.

5. Rise time: 40 mS Max.at 220Vac input and output Max load.

6. Efficiency: 85% Min, At220Vac input voltage and full load calculation efficiency.

7. Overshoot: 8% Max.When power supply at turn or turn off.

4) Protection Functions

1. Short circuit protection: auto recovered when short circuit faults remove.

2. Over current Protection: auto recovered when over current faults remove.

3. Over load protection: auto recovered when over current faults remove.

4. Over Voltage protection: locked down. restart to recover.

5) Test

Drop test, Salt Spray Test, Surge test, Ageing test, lightning test, Temperature Variation test etc.

6) Safety Requirement

1. Safety Standard: Safety: Design by IEC60950 standard.

2. DIELECTRIC STRENGTH Hi-Pot:
Primary to secondary: 1200Vac/10mA/60S for type test.
Primary to case: 1200Vac/10mA/60S for type test.

3. Iusulation resistance: Primary to secondary:10MΩ min at 500V DC.

7) EMI Requirement

Designed according to the following standards:

1. FCC class B rules

2. EN55022 class B rules

3. GB9254-1998,GB17625.1-2003

8) Load and Environment Temperature

pic-1

pic-2

9) Structurer

pic-3

10) OEM: Customize label and Inner box

11) Packing details: 48PCS/CTN

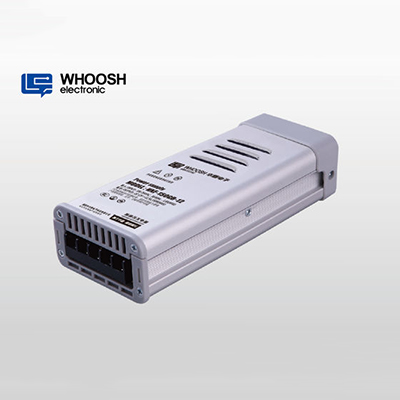

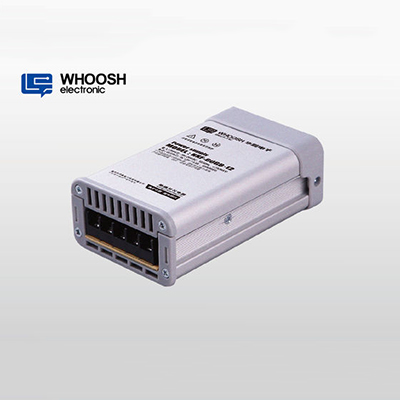

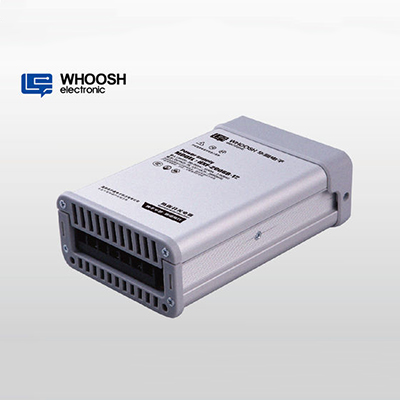

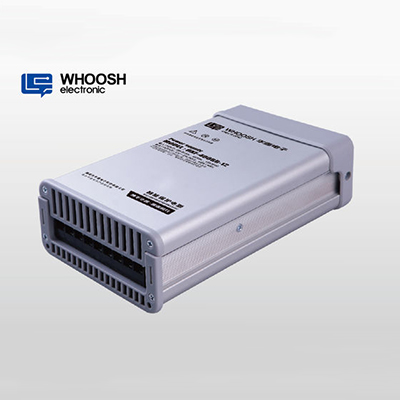

12) More product pictures

25A AC DC Transformer For LED Lights Waterproof LED Power Supply 12V 300W 4

GB-Series Rainproof Power Supply Series
Model	Size(mm)	Efficiency(>)	Input	Output	Power
HXF-400GB-12	201×115×55	>85%	180~264VAC	12V/33.3A	400W
HXF-400GB-24	201×115×55	>87%	180~264VAC	24V/16.7A	400W
HXF-300GB-12	198×100×50	>85%	180~264VAC	12V/25A	300W
HXF-200GB-12	171.5×100×50	>87%	180~264VAC	12V/16.7A	200W
HXF-200GB-24	171.5×100×50	>85%	180~264VAC	12V/8.3A	200W
HXF-150GB-12	185.5×73×41	>87%	180~264VAC	12V/12.5A	150W
HXF-60GB-12	128×73×41	>85%	180~264VAC	12V/5A	60W

Factory Capacibility

1. Professional manufacturer

17 Years experience, 10,000 square meters factory, 400+ employees, 8 production lines

2. Scientific Management

ISO9001:2015 Quality Management System Certified, 7S administration

3. Independent R&D teams

10+ Engineer teams, innovative and independent R&D ability

4. Advanced equipment

SMT plant, wave-soldering machine, Semi-auto assembling, EMC lab, Test Lab, Ageing room etc.

pic-4

Product Details

Output Current	25A	Output Type	Single
Output Voltage	12V	Output Frequency	50/60Hz
Input Voltage	180-264Vac	Output Power	300W
Warranty	3 Years	Size	198.5100.550.5mm
Material	Aluminum Housing	IP Level	IP62 For Outdoor
OEM	Yes	Protection	Over-load, Over-voltage, Over-current, Short-circuit
High Light	Waterproof LED Power Supply 12V 300W, AC DC Transformer For LED Lights, 25A 12V AC DC Transformer
