IP62 Waterproof LED Power Supply 12V 150W 12.5A Constant Voltage LED Driver
| Place of Origin | China |
|---|---|
| Brand Name | WHOOSH |
| Certification | CE |
| Model Number | HXF-150GB-12 |
| Minimum Order Quantity | 50PCS |
| Price | US$6-6.5 |
| Packaging Details | 56PCS/CTN |
| Delivery Time | 2-7 Days |
| Payment Terms | T/T, Western Union, MoneyGram |
| Supply Ability | 20000PCS per day |
Product Description
Product Specification
Rainproof LED Power Supply 12V 150W for LED sign and lighting
Highlights
Intelligent overload protection, constant voltage, constant current mode.
1) Basic Sepcifications
| Model | Size/mm | Input | Output | Output Current | Warranty |
| HXF-150GB-12 | 185.5x73x41 | AC 180~264V | DC 12V | 12.5A | 3 Years |
2) Input Characteristics
Input Voltage: AC 180-264V
Input Frequency: 50/60Hz
Input Current: 2.5A Max (full loaded at the lower limited of input voltage range)
Inrush Current: 80 Amps Max. Cold start at 240Vac input, with rated load and 25℃ ambient.
Ac Leakage Current: 3.5mA Max. At 240Vac input
3) Output Characteristics
1. Output Power
| Voltage | Min. Load | Rated Load | Peak@10mS | Rated Output Power |
| DC 12V | 0A | 12.5A | 180W | 150W |
2Line Regulation
| Voltage | Min. Load | Rated Load | Line Regulation | Load Regulation |
| DC 12V | 0A | 12.5A | ±3% | ±5% |
3. Ripple and Noise
Under nominal voltage and nominal load,the ripple and noise are as follows when measure with Max.Bandwidth of 20MHz and Parallel 47uF/0.1uF,crossed connected at testing point.
| Voltage | Ripple and Noise(Max.) |
| 12V DC | 200mV p-p |
4. Turn on delay time: 2 Seconds Max.at 220Vac input and output Max.load.
5.Rise time:400 mS Max.at 220Vac input and output Max load.
6. Efficiency: 87% Min, At220Vac input voltage and full load calculation efficiency.
7. Overshoot: 8% Max.When power supply at turn or turn off.
4) Protection Functions
1. Short circuit protection: auto recovered when short circuit faults remove.
2. Over current Protection: auto recovered when over current faults remove.
3. Over load protection: auto recovered when over current faults remove.
4. Over Voltage protection: locked down. restart to recover.
5) Test
Drop test, Salt Spray Test, Surge test, Ageing test, lightning test, Temperature Variation test etc.
6) Safety Requirement
1. Safety Standard: Safety: Design by IEC60950 standard.
2. DIELECTRIC STRENGTH Hi-Pot:
Primary to secondary:1200Vac/10mA/60S for type test.
Primary to case:1200Vac/10mA/60S for type test.
3. Iusulation resistance:Primary to secondary:10MΩ min at 500V DC.
7) EMI Requirement
Designed according to the following standards:
1. FCC class B rules
2. EN55022 class B rules
3. GB9254-1998,GB17625.1-2003
8) Load and Environment Temperature
9) Structurer
Led power supply structure
10) OEM: Customize label and Inner box

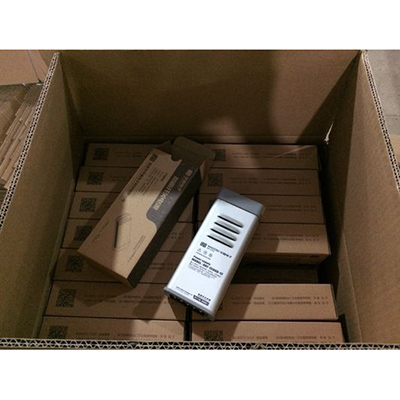

11) Packing details: 56PCS/CTN

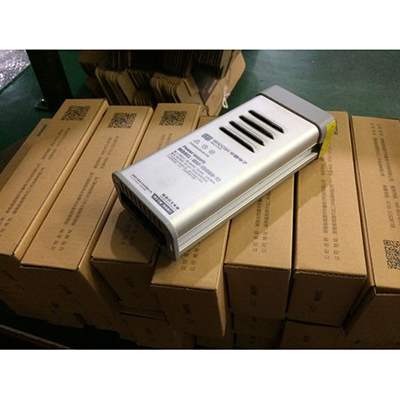

12) More product pictures:
IP62 Waterproof LED Power Supply 12V 150W 12.5A Constant Voltage LED Driver 3
| GB-Series Rainproof Power Supply Series | |||||
| Model | Size(mm) | Efficiency(>) | Input | Output | Power |
| HXF-400GB-12 | 201×115×55 | >85% | 180~264VAC | 12V/33.3A | 400W |
| HXF-400GB-24 | 201×115×55 | >87% | 180~264VAC | 24V/16.7A | 400W |
| HXF-300GB-12 | 198×100×50 | >85% | 180~264VAC | 12V/25A | 300W |
| HXF-200GB-12 | 171.5×100×50 | >87% | 180~264VAC | 12V/16.7A | 200W |
| HXF-200GB-24 | 171.5×100×50 | >85% | 180~264VAC | 12V/8.3A | 200W |
| HXF-150GB-12 | 185.5×73×41 | >87% | 180~264VAC | 12V/12.5A | 150W |
| HXF-60GB-12 | 128×73×41 | >85% | 180~264VAC | 12V/5A | 60W |
Factory Capacibility
1. Professional manufacturer
17 Years experience, 10,000 square meters factory, 400+ employees, 8 production lines
2. Scientific Management
ISO9001:2015 Quality Management System Certified, 7S administration
3. Independent R&D teams
10+ Engineer teams, innovative and independent R&D ability
4. Advanced equipment
SMT plant, wave-soldering machine, Semi-auto assembling, EMC lab, Test Lab, Ageing room etc.
Product Details
| Output Current | 12.5A | Output Type | Single |
|---|---|---|---|
| Output Voltage | 12V | Output Frequency | 50/60Hz |
| Input Voltage | 180-264Vac | Output Power | 150W |
| Warranty | 3 Years | Size | 185.5x73x41mm |
| Material | Aluminum Housing | IP Level | IP62 For Outdoor |
| OEM | Yes | Protection | Over-load, Over-voltage, Over-current, Short-circuit |
| High Light | Waterproof LED Power Supply 12V 150W, 12.5A Constant Voltage LED Driver, IP62 Constant Voltage LED Driver | ||
Customer Questions & Answers
You can tick the products you need and communicate with us in the message board.
INQUIRY
| MODEL | SIZE/MM | AC INPUT | DC OUTPUT VOLT. | OUTPUT CURRENT | RATED POWER | COOLING | PCS/CTN | WARRANTY |
|---|
