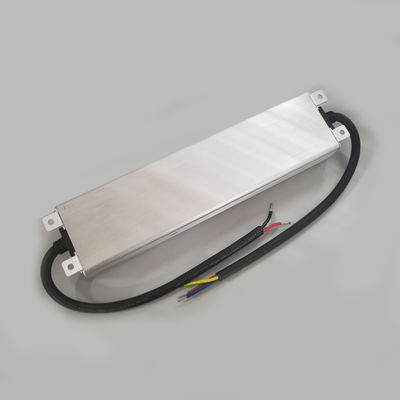

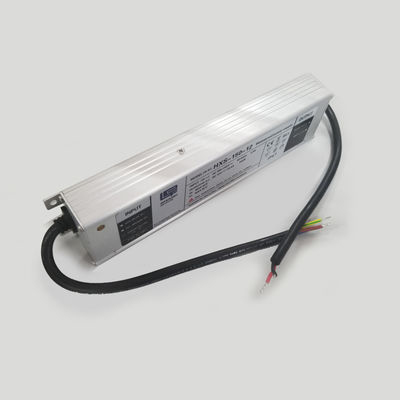

DC 6.25A 24V Waterproof 150 Watt Power Supply Aluminium Housing LED Driver

InputAC 200-240V, 50/60HzOutput

DC12V 12.5A

DC 24V 6.25A 150W

Warranty3 YearsIP LevelIP67 Waterproof
ProtectionsShort Circuit, Over Load, Over VoltageWorking Temperature-20~40°C
TypeConstant Voltage, Single Output. Non Dimmable

High Light150W Waterproof 24V Power Supply, 6.25A Waterproof 24V Power Supply, 6.25A 150 Watt LED Driver

Product Details

Model Number



Within 48 Hours: for regular stock models

Brand Name


1-2 weeks: for OEM orders

Place of Origin



3 Years



Sample Policy

Free samples 1-3PCS/Model

Customized Cost

Customized sticker/printing for free; Customized boxes for free >1000pcs each;

Payment Terms

T/T, Western Union,Money Gram

Supply Ability

22,000pcsper day


< 0.3% according to statistics collected;

Replacement against defective products pictures or more application details if needed

Ports support

Guangzhou, Shenzhen, Shanghai, Ningbo, Yi Wu, other mainland ports


With detailed inquiry, Accurate quotation can be emailed within 24 hours;

Inquiry to: [email protected]

Product Description

150W Outdoor AC to DC IP67 Waterproof Power Supply for LED Module LED Sign Lighting

Product Description
ModelSize/mmAC InputDC OutputCurrentPowerFrequencyEfficiencyWarranty
HXS-150-12261*60*37200-240VAC12V12.5A150W50/60Hz>86%3 Years
HXS-150-24261*60*37200-240VAC24V6.25A150W50/60Hz>86%3 Years

* AC input 200-240V, 50/60Hz

* DC output 24V 6.25A 150W

* Efficiency: >86%

* IP67 waterproof outdoor use, 100% OEM compatible, 3 years warranty;

* Constant voltage, single input and output design;

* Workable from -20 degree to 60 degree;

* Separated level for thermal dissipation;

* Protections: short circuit, over load and over voltage;

* Defective rate is less than 1% in 2 years.

* 100% full load burn-in test before delivery;

* NO MOQ, regular stock, quick delivery;

* Application: LED Sign, LED Advertising, LED Illumination, etc.

1. Output Characteristics

1.1 Output Power

VoltageMin. LoadRated LoadPeak@10mSRated Output Power
DC 24V0A6.25A180W150W

1.2 Line Regulation

VoltageMin. LoadRated LoadLine RegulationLoad Regulation
DC 24V0A6.25A±3%±5%

1.3 Ripple and Noise

Under nominal voltage and nominal load,the ripple and noise are as follows when measure with Max.Bandwidth of 20MHz and Parallel 47uF/0.1uF,crossed connected at testing point.

VoltageRipple and Noise(Max.)
12V DC200mV p-p

1.4 Turn on delay time: 2Second 220Vac input and output Max.load.

1.5 Rise time:40 mS 220Vac input and output Max load.

1.6 Overshoot: 5% Max.When power supply at turn or turn off.

2. Protection Functions

2.1 Short circuit protection: auto recovered when short circuit faults remove.

2.2 Over current Protection: auto recovered when over current faults remove.

2.3 Over load protection: auto recovered when over current faults remove.

3. Test

Drop test

4. Safety Requirement

4.1 Safety Standard: Safety: Design by IEC60950 standard.

Primary to secondary:1200Vac/10mA/60S for type test.
Primary to case:1200Vac/10mA/60S for type test.

4.3 Iusulation resistance:Primary to secondary:10MΩ min at 500V DC.

5. EMI Requirement

Designed according to the following standards:
5.1 FCC class B rules
5.2 EN55022 class B rules
5.3 GB9254-1998,GB17625.1-2003

Related Products
WHOOSH Waterproof Power Supply Product List (IP67, 3 years warranty)
Model NameOutput DC PowerSize(mm)MOQ/PackingCarton Size(mm)G.W/ctnInput AC Power
HXS-30-1230W12V 2.5A24V 1.25A169*33.5*23.560pcs/carton391*247*24316kg100~240V AC 50/60Hz
HXS-60-1260W12V 5A24V 2.5A162*42*3248pcs/carton391*247*24322100~240V AC 50/60Hz
HXS-100-12100W12V 8.3A24V 4.1A226*60*3720pcs/carton393*268*17917200~240V AC 50/60Hz
HXS-150-12150W12V 12.5A24V 6.25A248*60*3716pcs/carton320*305*17917200~240V AC 50/60Hz
HXS-200-12200W12V 16.6A24V 8.3A256*72*4312pcs/carton365*305*15615200~240V AC 50/60Hz
HXS-300-12300W12V 25A24V 12.5A296*72*4312pcs/carton365*343*16018200~240V AC 50/60Hz
