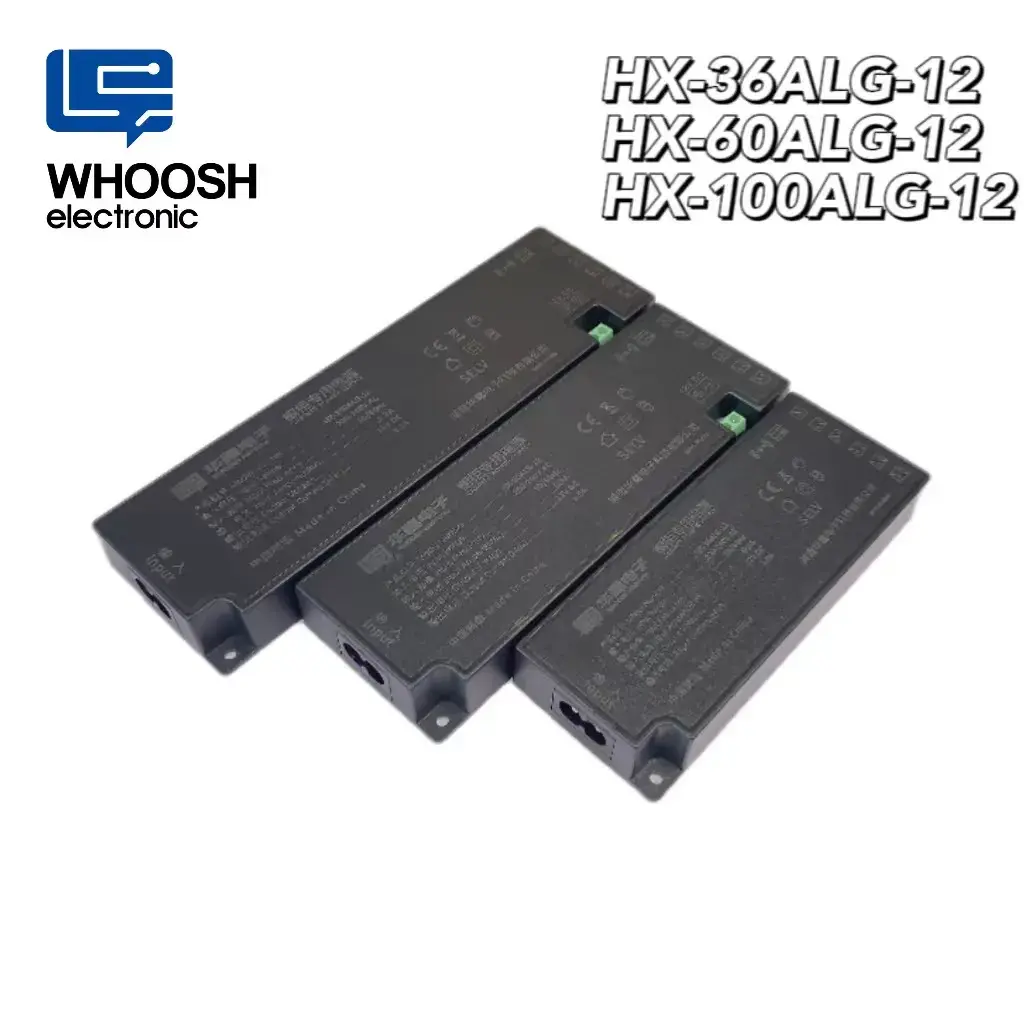

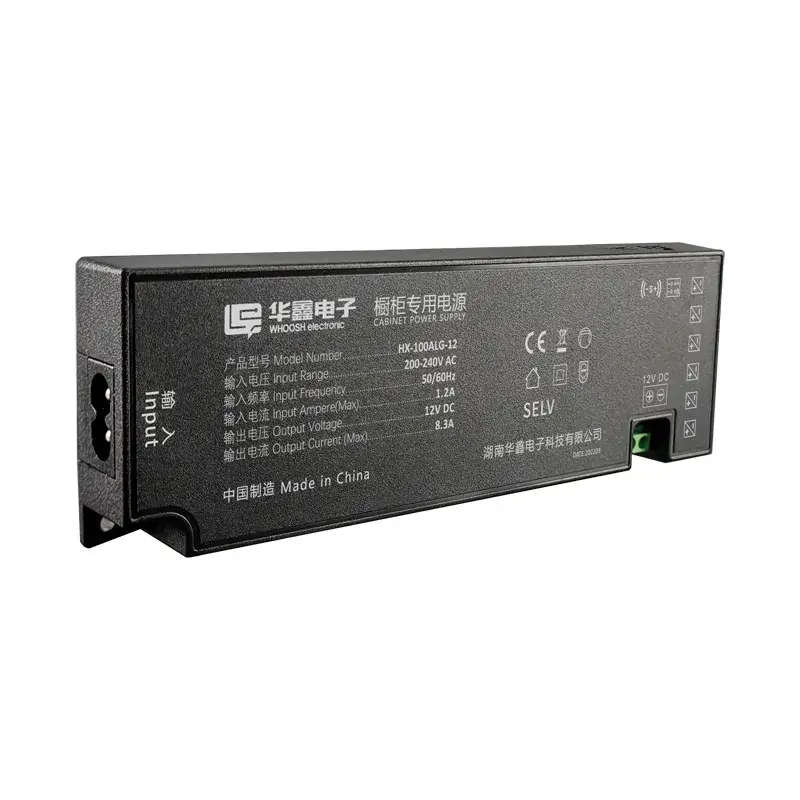

DC12V 8.3A 100W Cabinet Power Supply Ultra-thin appearance DuPont output interface

Home > Products > DC12V 8.3A 100W Cabinet Power Supply Ultra-thin appearance DuPont output interface

DC12V 8.3A 100W Cabinet Power Supply Ultra-thin appearance DuPont output interface
DC12V 8.3A 100W Cabinet Power Supply Ultra-thin appearance DuPont output interface
DC12V 8.3A 100W Cabinet Power Supply Ultra-thin appearance DuPont output interface
DC12V 8.3A 100W Cabinet Power Supply Ultra-thin appearance DuPont output interface
DC12V 8.3A 100W Cabinet Power Supply Ultra-thin appearance DuPont output interface
DC12V 8.3A 100W Cabinet Power Supply Ultra-thin appearance DuPont output interface

DC12V 8.3A 100W Cabinet Power Supply Ultra-thin appearance DuPont output interface


Input

AC200-240V, 50/60Hz

Output

DC 12V 8.3A

DC 24V 4.16A

Warranty

3 Years

OEM

YES

Housing

High-quality flame-retardant plastic shell

Working Temperature

-20~40°C

Protections

Short Circuit, Over Load, Over Voltage



Type

Constant Voltage, Single Output.



High Light

Ultra-thin appearance

Patented hidden hanging hole

Dust-proof, Moisture-proof and water-resistant

DuPont output interface

SC, OV, OL protections





Product Details

Model Number

HX-100ALG-12/24

LeadTime

Within 48 Hours: for regular stock models

Brand Name

WHOOSH / OEM

1-2 weeks: for OEM orders

Place of Origin

Hunan,China

Warranty

3 Years

MOQ

100PCS/Model

Sample Policy

Free samples 1-3PCS/Model

Customized Cost

Customized sticker/printing for free; Customized boxes for free >1000pcs each;

Payment Terms

T/T, Western Union,Money Gram

Supply Ability

22,000pcsper day

Aftersales

< 0.3% according to statistics collected;

Replacement against defective products pictures or more application details if needed

Ports support

Guangzhou, Shenzhen, Shanghai, Ningbo, Yi Wu, other mainland ports

Price

With detailed inquiry, Accurate quotation can be emailed within 24 hours;

Inquiry to: [email protected]





Product Description
Product Specification

AC 200-240V to DC 12V 8.3A 100W Switching Power Supply

1) Sepcifications

Model

Size/mm

Input

Output

Output Current

Warranty

HX-100ALG-12

200*60*21

AC200-240V

DC 12V

8.3A

3 Years

HX-100ALG-24

DC 24V

4.16A

3 Years

2) Input Characteristics

Input Voltage: AC 200-240V

Input Frequency: 50/60Hz

Input Current: 1.2A Max (full loaded at the lower limited of input voltage range)

Inrush Current:4.8 Amps Max. Cold start at 240Vac input, with rated load and 25℃ ambient.

Ac Leakage Current: 0.75mA Max. At 240Vac input

3) Output Characteristics

1. Output Power

Voltage

Min. Load

Rated Load

Peak@10mS

Rated Output Power

DC 12V

0A

8.3A

120W

100W

DC 24V

0A

4.16A

120W

100W

2. Line Regulation

Voltage

Min. Load

Rated Load

Line Regulation

Load Regulation

DC 12V

0A

8.3A

±3%

±5%

DC 24V

0A
