WHOOSH NDR Series 75W 120W 240W 480W 12V 24V 48V Economical Slim Din Rail Power Supply Series for Factory Automation
|
Model |
Size |
AC Input |
DC Output |
Rated Power |
Output current |
Efficiency |
|

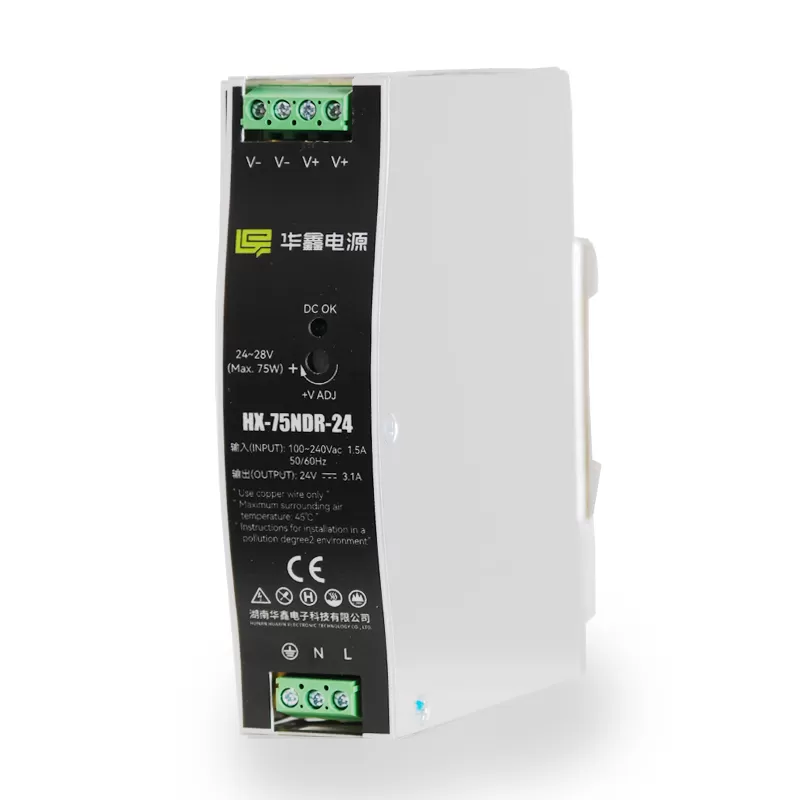

HX-75NDR-12 |
125.2*32*102.3mm |
AC 100-264V |
12V |
75W max |
6.25A |
≥85% |
|
HX-75NDR-24 |
125.2*32*102.3mm |
AC 100-264V |
24V |
75W max |
3.1A |
≥88% |
|
HX-75NDR-48 |
125.2*32*102.3mm |
AC 100-264V |
48V |
75W max |
1.57A |
≥90% |
|
HX-120NDR-12 |
125.2*40*113.8mm |
AC 100-264V |
12V |
120W max |
10A |
≥85% |
|
HX-120NDR-24 |
125.2*40*113.8mm |
AC 100-264V |
24V |
120W max |
5A |
≥88% |
|
HX-120NDR-48 |
125.2*40*113.8mm |
AC 100-264V |
48V |
120W max |
2.5A |
≥90% |
|
HX-240NDR-24 |
125.2*63*114.8mm |
AC 100-264V |
24V |
240W max |
10A |
≥88% |
|
HX-240NDR-48 |
125.2*63*114.8mm |
AC 100-264V |
48V |
240W max |
5A |
≥90% |
|
HX-480NDR-24 |
125.2*85.5*129.1mm |
AC 100-264V |
24V |
480W max |
20A |
≥87% |
|
HX-480NDR-48 |
125.2*85.5*129.1mm |
AC 100-264V |
48V |
480W max |
10A |
≥90% |
Description

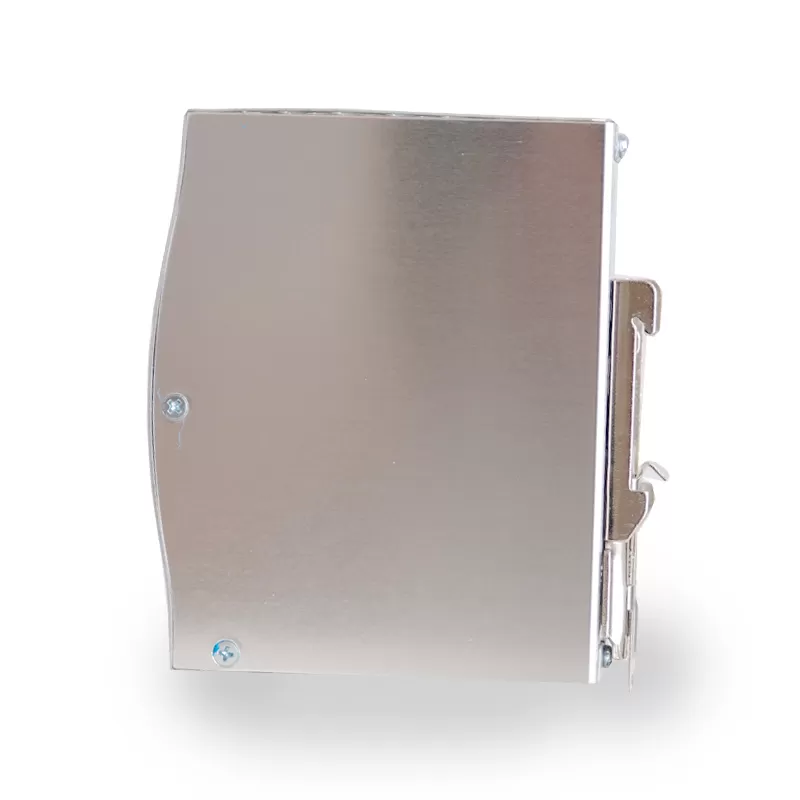

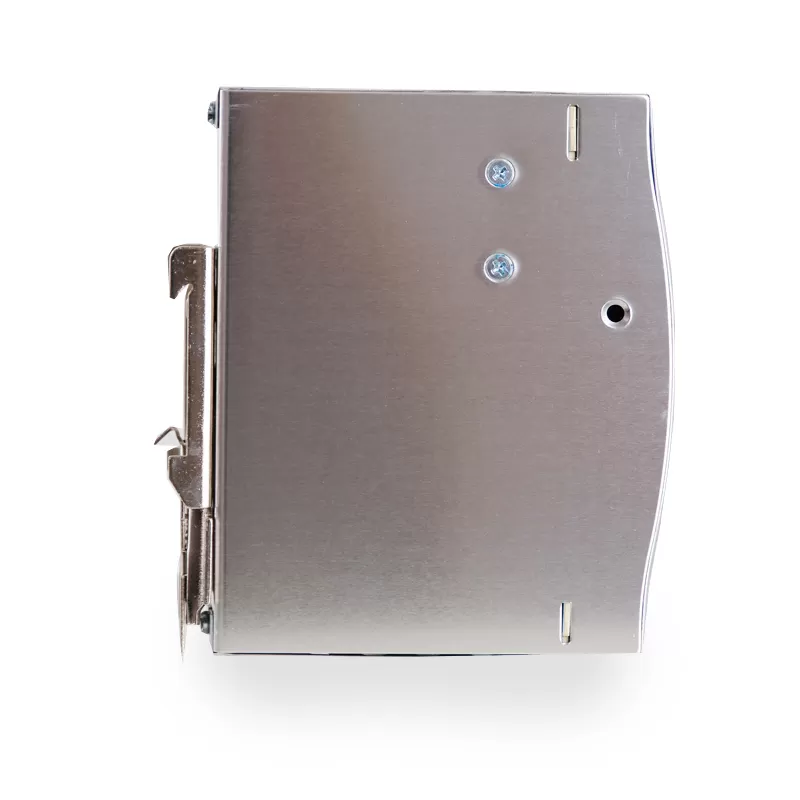

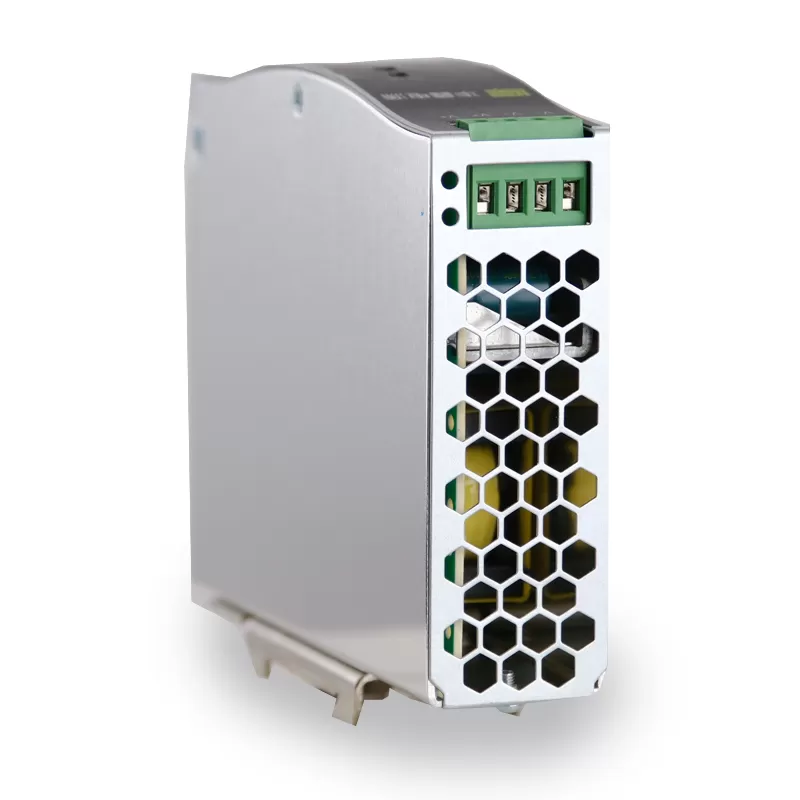

75NDR is one economical slim 75W DIN rail power supply series, adapt to be installed on TS-35/7.5or TS-35/15 mounting rails. The body is designed 40mm in width, which allows space saving inside thecabinets. The entire series adopts the full range AC input from 100VAC to 264VAC and conforms to BS EN/EN61000-3-2, the norm the European Union regulates for harmonic current.75NDR is designed with metal housing that enhances the unit's power dissipation. With working efficiencyup to 89%, the entire series can operate at the ambient temperature between -20'℃ and 70'℃ under air convection. lt is equipped with constant current mode for over-load protection, fitting various inductiveor capacitive applications. The complete protection functions and relevant certificates for industrial controlapparatus make 75NDR a very compeitive power supply solutionfor industrial applications.
Features
Universal AC input /Full range
Protections: Short circuit / Overload /Over voltage
/ Over temperature

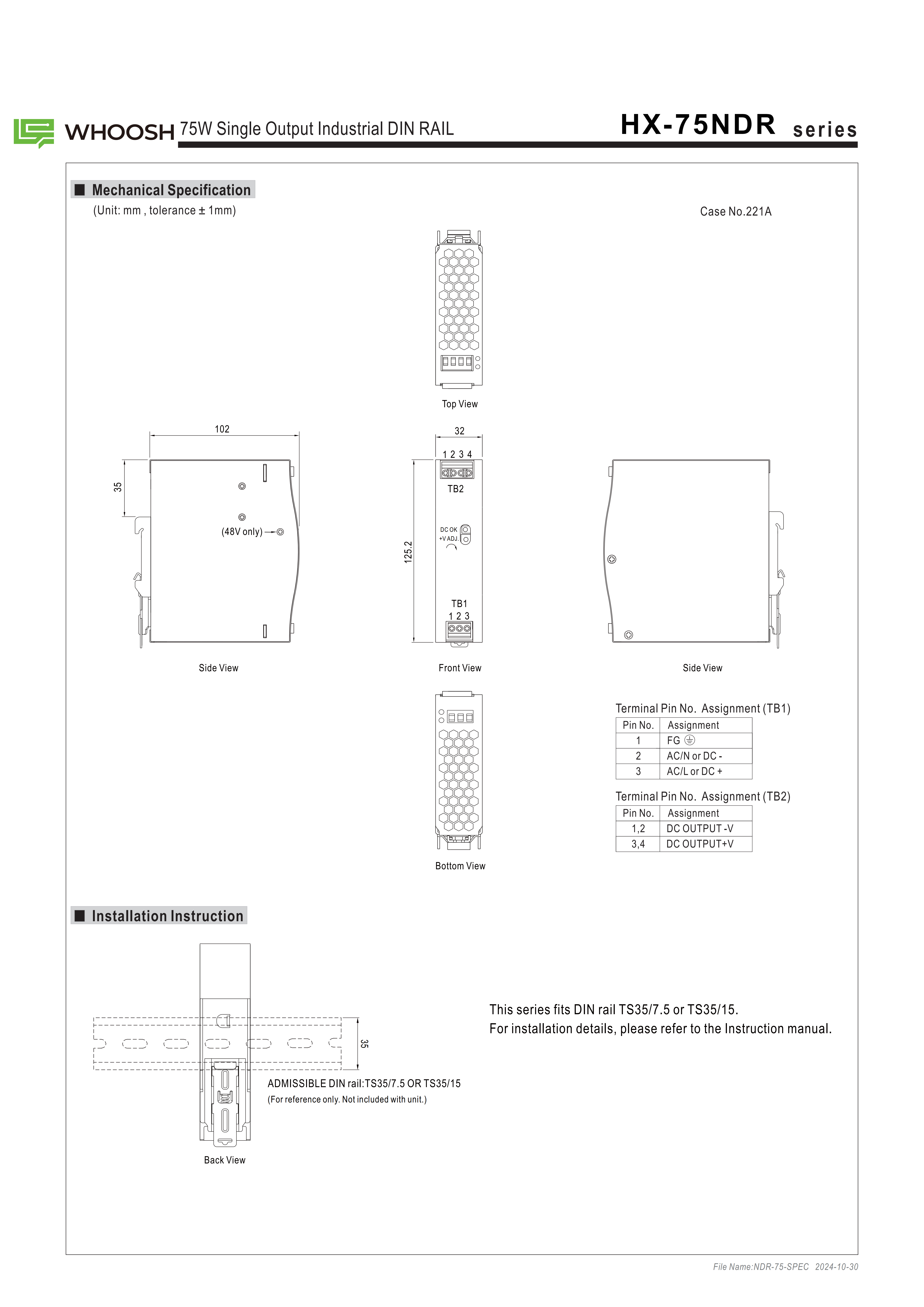

Cooling by free air convection Can be installed on DlN rail TS-35/7.5 or 15
UL 508 (industrial control equipment) approved
BS EN/EN61000-6-2(BS EN/EN50082-2) industrial immunity level 100% full load burn-in test 3 years warranty
Application
Industrial control system
Semiconductor fabrication equipment
Factory automation
Electro-mechanical apparatus
Customer Questions & Answers
You can tick the products you need and communicate with us in the message board.
-

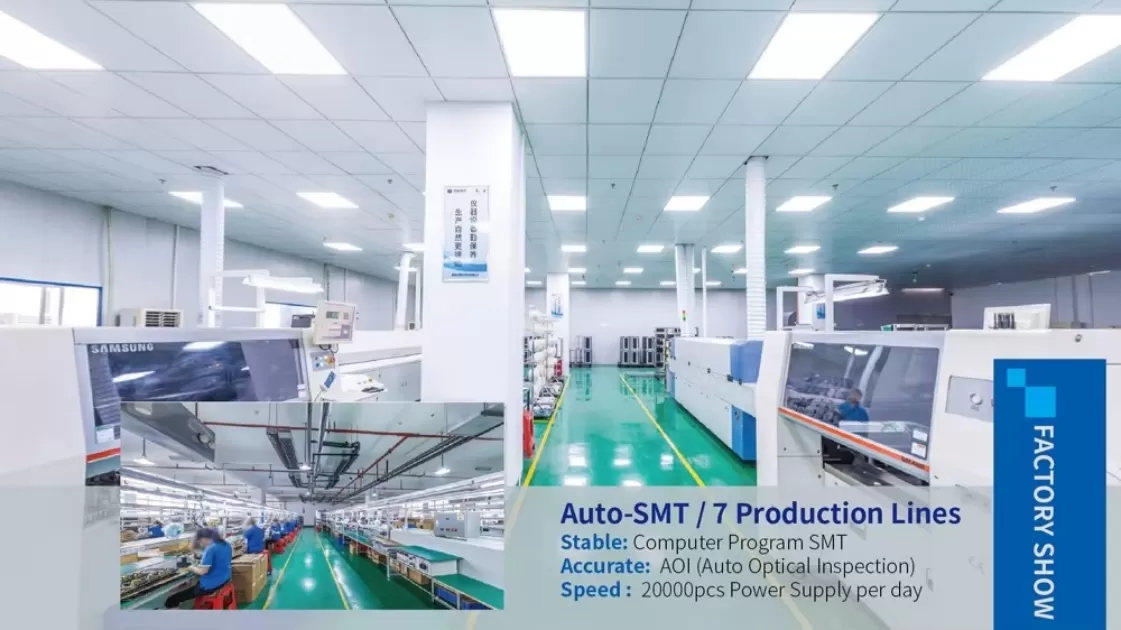

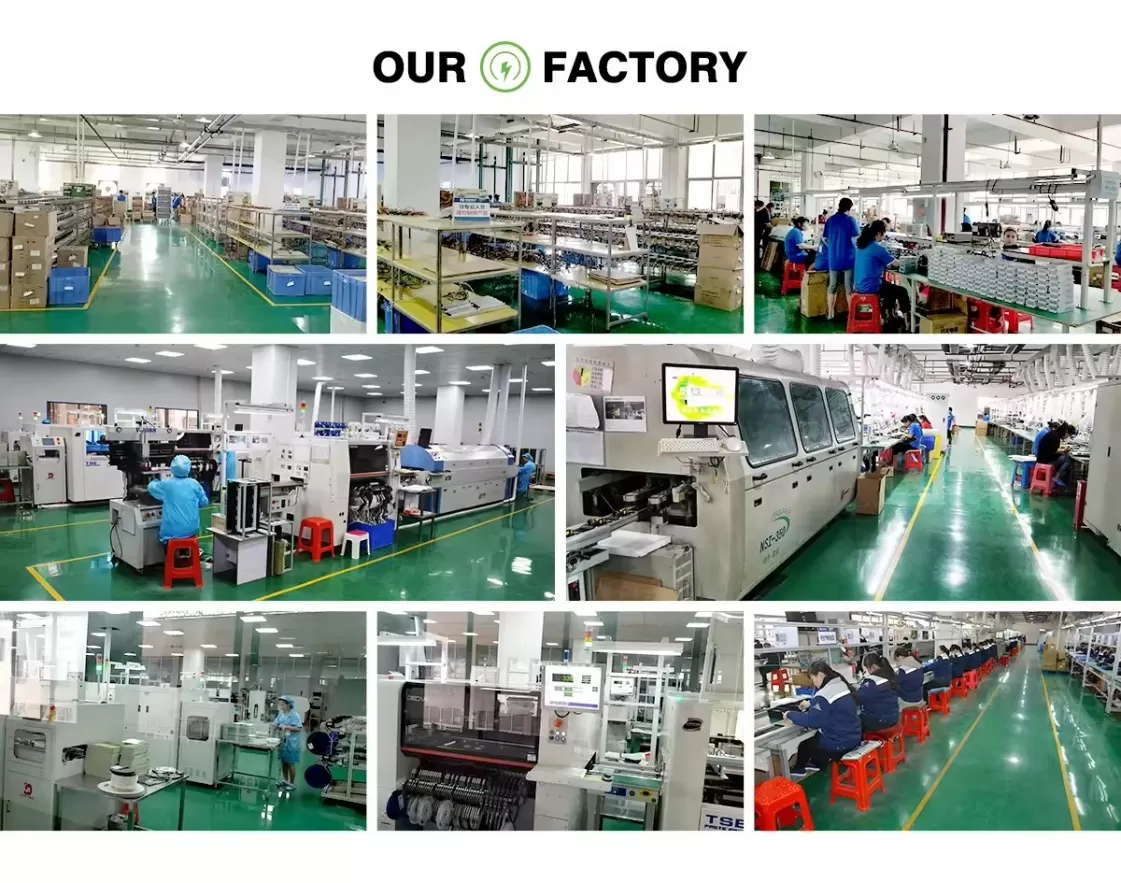

Factory Capacibility
Hunan Whoosh Electronic Technology Co., LTD

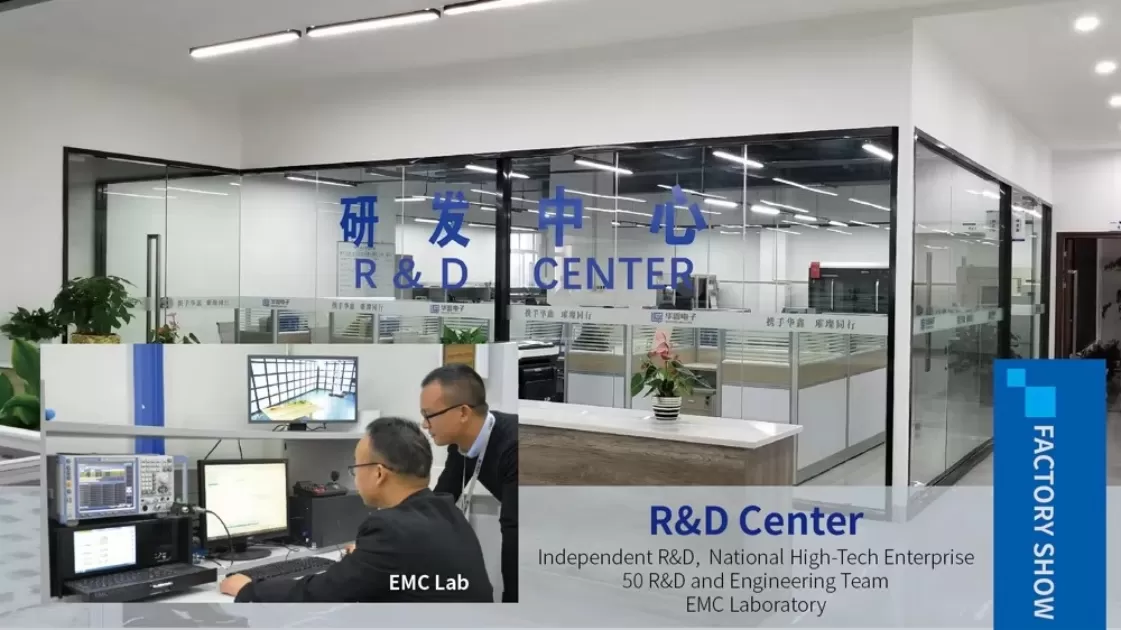

Whoosh Electronics was founded in 2004 with a factory area of more than 10000 square meters. We have passed the ISO9001:2015 quality management system, and our product have successively passed the 3C, CE,FCC certifications. Now we have more than 400 employees, including more than 50 R&D and engineering technicians and 8 production lines. The product mainly including indoor and outdoor switching power supply and adapter. Products are widely used in industrial automation, LED lighting, illumination and security devices, medical equipment and other fields.
Certificate
- Exhibition
- FAQ
A: Yes, 1pc is available if needed.
Q2: What’s your MOQ?
A: Normally the MOQ for commercial order is 1 carton for each kind of product.
However, 1pc can be available to support for your trail order, welcome to inquiry.
Q3: Is there any discount?
A: Of course. Price is based on your quantity. We are committed to supplying best price for every customer.
Q4: How about delivery time?
A: 1-25days which depends on detail items and quantity.
Exporting port:
Guangzhou, Shenzhen, Shanghai, Yiwu, Lianyungang, Tashkent, etc. Guangzhou is the nearest port.
After-sales service:
A strong factory since 2004 and 400 employees, top 5 biggest manufacturer in China to support the aftersales.
We will always behind you to support you with less than 1% natural defective rate.
Payment term:
T/T, Western Union, PayPal, or negotiate when order.
INQUIRY
| MODEL | SIZE/MM | AC INPUT | DC OUTPUT VOLT. | OUTPUT CURRENT | RATED POWER | COOLING | PCS/CTN | WARRANTY |
|---|
