IP67 dc 2.5A 24V Waterproof Power Supply 60W for Outdoor lighting
Place of Origin | China |
Brand Name | WHOOSH |
Certification | CE, IP67 |
Model Number | HXS-60-24 |
Minimum Order Quantity | 1 |
Price | Pls contact us for more info, thank you |
Packaging Details | Pack in a brown carton outside and a box per piece inside. (Or negotiate when order). |
Delivery Time | 2-7 days |
Payment Terms | T/T, Western Union, PayPal, or negotiate when order |
Supply Ability | 20,000pcs per day |
Product Details
Input | AC 100-240V, 50/60Hz | Output | DC 24V 2.5A 60W |
---|---|---|---|
Warranty | 3 Years | IP Level | IP67 Waterproof |
Housing | Plastic Housing | OEM | YES |
Protections | Short Circuit, Over Load, Over Voltage | Working Temperature | -20~40°C |
Type | Constant Voltage, Single Output. Non Dimmable | ||
High Light | 2.5A 24V Outdoor Transformer, 162*42*32mm IP67 Waterproof Power Supply, 60W 24V Outdoor Transformer |
Product Description
AC to DC IP67 Waterproof Power Supply Output 24V60W for Outdoor LED Lighting
Product Description
Model | Size/mm | AC Input | DC Output | Current | Power | Frequency | Efficiency | Warranty |
HXS-60-12 | 162*42*32 | 100-240VAC | 12V | 5A | 60W | 50/60Hz | >86% | 3 Years |
HXS-60-24 | 162*42*32 | 100-240VAC | 24V | 2.5A | 60W | 50/60Hz | >86% | 3 Years |
Advantages
* AC input 100-240V, 50/60Hz
* DC output 24V 2.5A 60W
* Efficiency: >86%
* IP67 waterproof outdoor use, 100% OEM compatible, 3 years warranty;
* Constant voltage, single input and output design;
* Workable from -20 degree to 60 degree;
* Separated level for thermal dissipation;
* Protections: short circuit, over load and over voltage;
* Defective rate is less than 1% in 2 years.
* 100% full load burn-in test before delivery;
* NO MOQ, regular stock, quick delivery;
* Application: LED Sign, LED Advertising, LED Illumination, etc.
1. Output Characteristics
1.1 Output Power
Voltage | Min. Load | Rated Load | Peak@10mS | Rated Output Power |
DC 24V | 0A | 2.5A | 72W | 60W |
1.2 Line Regulation
Voltage | Min. Load | Rated Load | Line Regulation | Load Regulation |
DC 24V | 0A | 2.5A | ±3% | ±5% |
1.3 Ripple and Noise
Under nominal voltage and nominal load,the ripple and noise are as follows when measure with Max.Bandwidth of 20MHz and Parallel 47uF/0.1uF,crossed connected at testing point.
Voltage | Ripple and Noise(Max.) |
12V DC | 200mV p-p |
1.4 Turn on delay time: 2Second Max.at 220Vac input and output Max.load.
1.5 Rise time:40 mS Max.at 220Vac input and output Max load.
1.6 Overshoot: 5% Max.When power supply at turn or turn off.
2. Protection Functions
2.1 Short circuit protection: auto recovered when short circuit faults remove.
2.2 Over current Protection: auto recovered when over current faults remove.
2.3 Over load protection: auto recovered when over current faults remove.
3. Test
Drop test
4. Safety Requirement
4.1 Safety Standard: Safety: Design by IEC60950 standard.
4.2 DIELECTRIC STRENGTH Hi-Pot:
Primary to secondary:1200Vac/10mA/60S for type test.
Primary to case:1200Vac/10mA/60S for type test.
4.3 Iusulation resistance:Primary to secondary:10MΩ min at 500V DC.
5. EMI Requirement
Designed according to the following standards:
5.1 FCC class B rules
5.2 EN55022 class B rules
5.3 GB9254-1998,GB17625.1-2003
Related Products

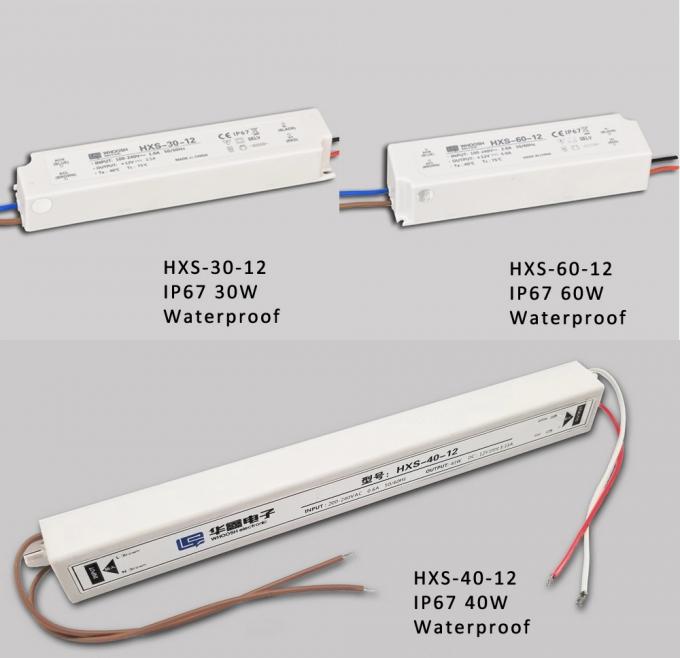

WHOOSH Waterproof Power Supply Product List (IP67, 3 years warranty) | ||||||
Model Name | Output DC Power | Size(mm) | MOQ/Packing | Carton Size(mm) | G.W/ctn | Input AC Power |
HXS-30-12 | 30W12V 2.5A24V 1.25A | 169*33.5*23.5 | 60pcs/carton | 391*247*243 | 16kg | 100~240V AC 50/60Hz |
HXS-60-12 | 60W12V 5A24V 2.5A | 162*42*32 | 48pcs/carton | 391*247*243 | 22 | 100~240V AC 50/60Hz |
HXS-100-12 | 100W12V 8.3A24V 4.1A | 226*60*37 | 20pcs/carton | 393*268*179 | 17 | 200~240V AC 50/60Hz |
HXS-150-12 | 150W12V 12.5A24V 6.25A | 248*60*37 | 16pcs/carton | 320*305*179 | 17 | 200~240V AC 50/60Hz |
HXS-200-12 | 200W12V 16.6A24V 8.3A | 256*72*43 | 12pcs/carton | 365*305*156 | 15 | 200~240V AC 50/60Hz |
HXS-300-12 | 300W12V 25A24V 12.5A | 296*72*43 | 12pcs/carton | 365*343*160 | 18 | 200~240V AC 50/60Hz |
--By 6 steps, Whoosh Power Supply Ensures Stable Quality:
Packaging & Shipping
--Regular packing
Pack in a big brown carton outside and a box or a bubble bag per piece inside. (Or negotiate when order).
--Shipping
Company Information
Hunan Huaxin (WHOOSH) Electronic Technology Co., Ltd.has specialized in LED AC to DC power supply manufacturing since 2004, located in Hunan province, in the central south of China. We have 6 production lines and 400 people in factory with 10,000 square meter, including the R&D team.
We have manufactured all kinds of LED power supply used for LED Sign, LED Advertising, LED Illumination, LED Screen, LED lightbox; CCTV Device, Industial Automation Facility, Electronic Communication Device, Medical Care Equipment, etc.
WHOOSH has passed ISO9001:2015 (certified by SGS) Quality Management System, Korea KC certification, EU CB Certification, CE, ROHS, CCC, EMS, LVD, IP67 Waterproof Level Certifications etc.
What's more, defective rate is less than 1% within 2 years.
--We are on the exhibitions!
Each year we have 3-4 domestic exhibitions (ISLE, SIGN CHINA, SHANGHAI LIGHT EXPO etc.) and 2-3 overseas exhibitions ( Asian, Middle East etc.)
--Honor & Certifications:
ISO9001:2015 (certified by SGS) Quality Management System, Korea KC certification, EU CB Certification, CE, ROHS, CCC, EMS, LVD, IP67 Waterproof Level Certifications etc.
FAQ
Q: Can I get samples?
A: Yes, 1pc is available if needed.
Q: What’s your MOQ?
A: Normally the MOQ for commercial order is 1 carton for each kind of product.
However, 1pc can be available to support for your trail order, welcome to inquiry.
Q: Is there any discount?
A: Of course. Price is based on your quantity. We are committed to supplying best price for every customer.
Q: How about delivery time?
A: 1-25days which depends on detail items and quantity.
Exporting port:Guangzhou, Shenzhen, Shanghai, Yiwu, Lianyungang, Tashkent, etc. Guangzhou is the nearest port.
After-sales service:
A strong factory since 2004 and 400 employees, top 5 biggest manufacturer in China to support the aftersales.
We will always behind you to support you with less than 1% natural defective rate.
Payment term:T/T, Western Union, PayPal, or negotiate when order.
Any needs, we are always here for you.
