Semi-potting silicone dimmable power supply 100w dc24v slow start 8 level brightness adjustable

Home > Products > Semi-potting silicone dimmable power supply 100w dc24v slow start 8 level brightness adjustable

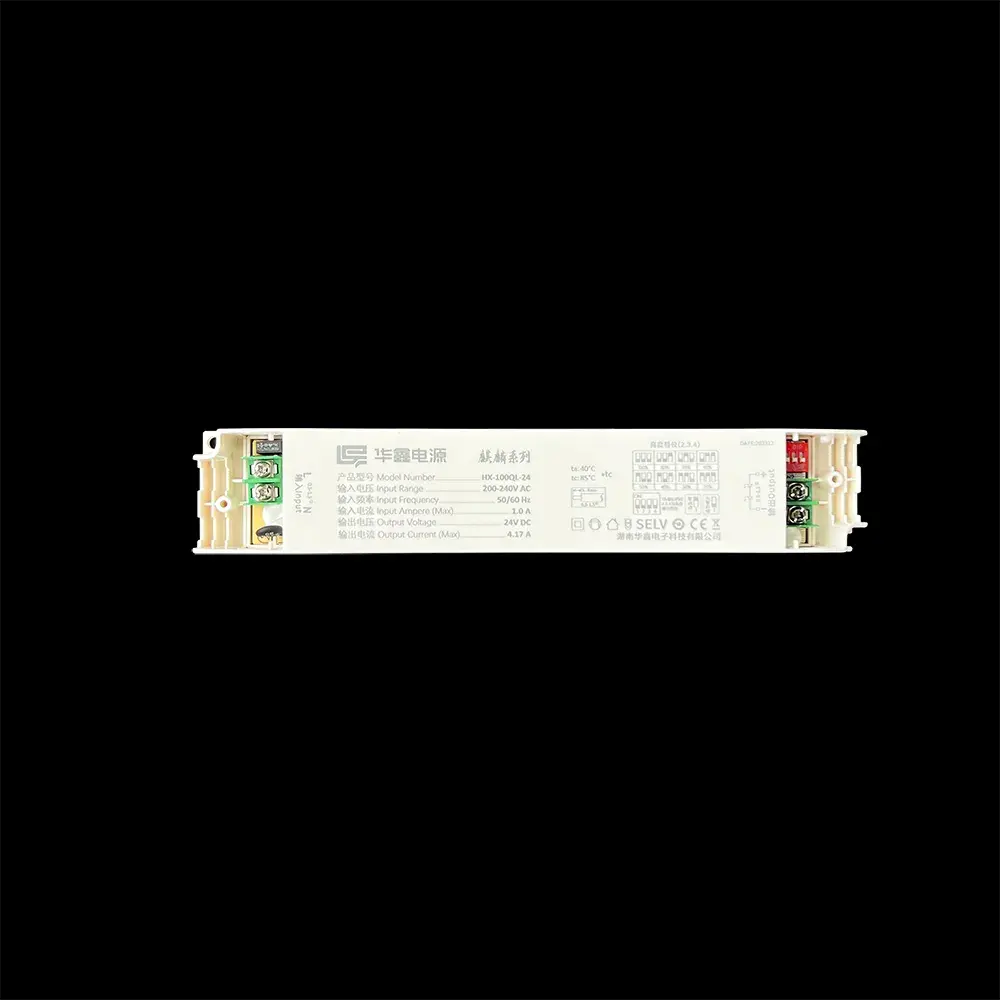

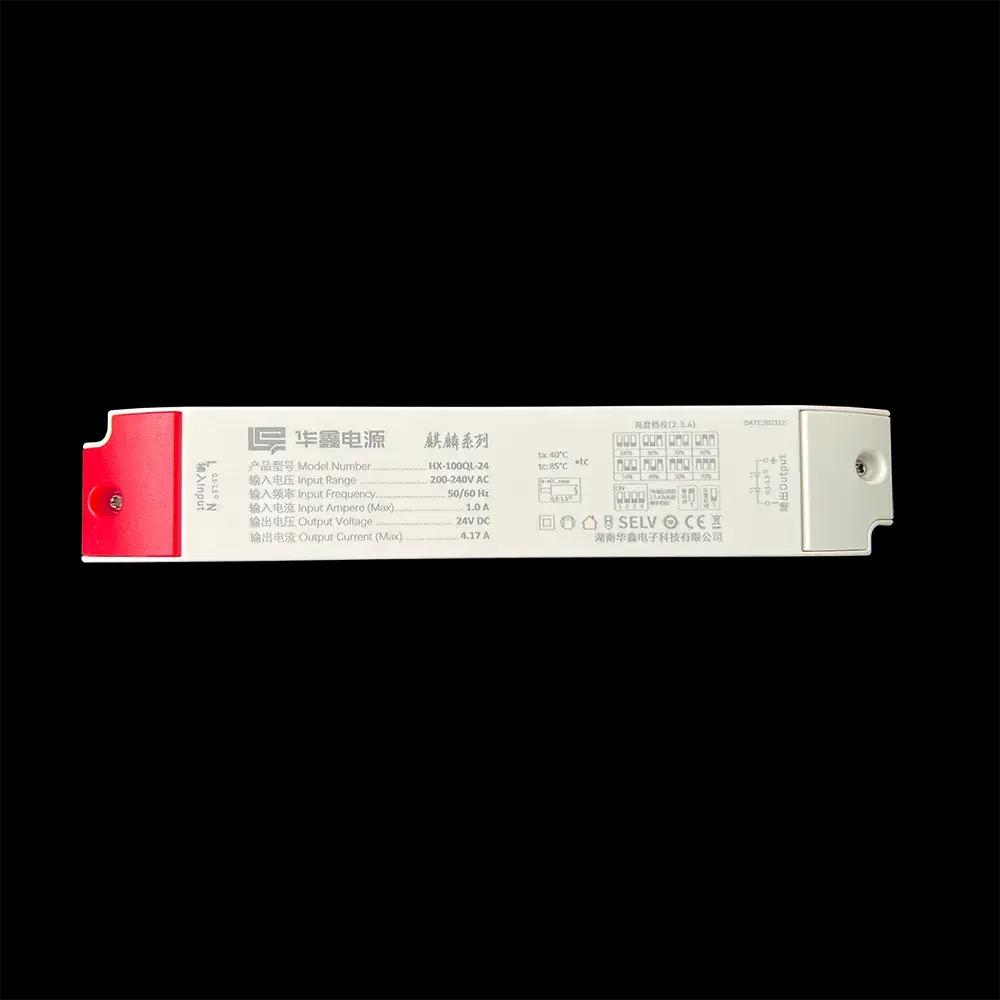

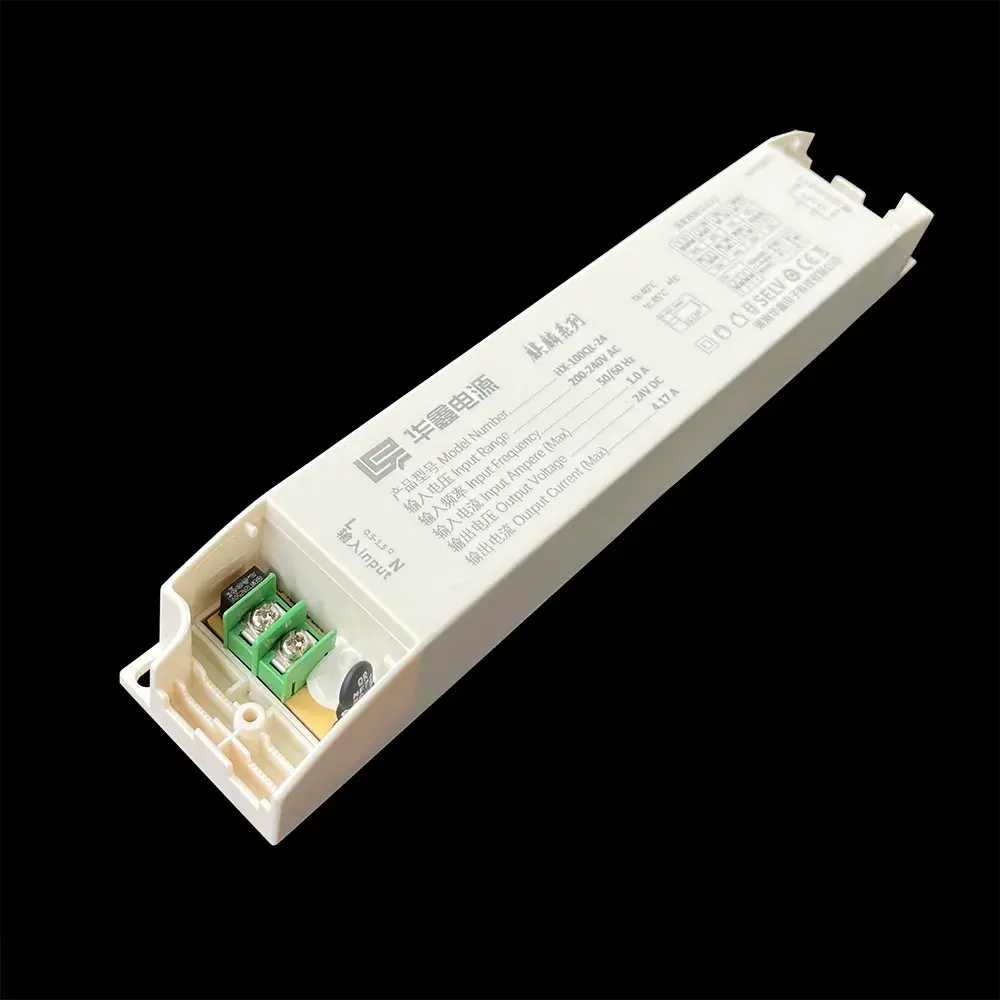

Semi-potting silicone dimmable power supply 100w dc24v slow start 8 level brightness adjustable
Semi-potting silicone dimmable power supply 100w dc24v slow start 8 level brightness adjustable
Semi-potting silicone dimmable power supply 100w dc24v slow start 8 level brightness adjustable
Semi-potting silicone dimmable power supply 100w dc24v slow start 8 level brightness adjustable
Semi-potting silicone dimmable power supply 100w dc24v slow start 8 level brightness adjustable
Semi-potting silicone dimmable power supply 100w dc24v slow start 8 level brightness adjustable
Semi-potting silicone dimmable power supply 100w dc24v slow start 8 level brightness adjustable
Semi-potting silicone dimmable power supply 100w dc24v slow start 8 level brightness adjustable
Semi-potting silicone dimmable power supply 100w dc24v slow start 8 level brightness adjustable
Semi-potting silicone dimmable power supply 100w dc24v slow start 8 level brightness adjustable
Semi-potting silicone dimmable power supply 100w dc24v slow start 8 level brightness adjustable
Semi-potting silicone dimmable power supply 100w dc24v slow start 8 level brightness adjustable
Semi-potting silicone dimmable power supply 100w dc24v slow start 8 level brightness adjustable
Semi-potting silicone dimmable power supply 100w dc24v slow start 8 level brightness adjustable
Semi-potting silicone dimmable power supply 100w dc24v slow start 8 level brightness adjustable
Semi-potting silicone dimmable power supply 100w dc24v slow start 8 level brightness adjustable

Semi-potting silicone dimmable power supply 100w dc24v slow start 8 level brightness adjustable


Input AC 200-240V, 50/60Hz Output DC  24V 3.3A
Warranty 3 Years IP Level IP20
Housing Plastic Housing OEM YES
Protections Short Circuit, Over Load, Over Voltage Working Temperature -20~40°C
Type Constant Voltage, Single Output. Dimmable
High Light WHOOSH100W 24V LED DriverFool-proofing synchronous dimmableIntegrated  housing with silicone fully sealedUsing 105℃ Long lifespan electrolytic capacitorsAdjust to 2 or 5 seconds power supplySoft-on driver flicker gradually for eye protectionFlame-retardant plastic and potting silicone power supply slow start to ensure double insulation



Product Details

Model Number

HX-100QL-24

LeadTime

Within 48 Hours: for regular stock models

Brand Name

WHOOSH / OEM

1-2 weeks: for OEM orders

Place of Origin

Hunan,China

Warranty

3 Years

MOQ

100PCS/Model

Sample Policy

Free samples 1-3PCS/Model

Customized Cost

Customized sticker/printing for free; Customized boxes for free >1000pcs each;

Payment Terms

T/T, Western Union,Money Gram

Supply Ability

22,000pcsper day

Aftersales

< 0.3% according to statistics collected;

Replacement against defective products pictures or more application details if needed

Ports support

Guangzhou, Shenzhen, Shanghai, Ningbo, Yi Wu, other mainland ports

Price

With detailed inquiry, Accurate quotation can be emailed within 24 hours;

Inquiry to: whooshpower@gmail.com

Product Description
Product Specification
1) Sepcifications

Model

Size/mm

Input

Output

Output Current

Warranty

HX-100QL-24

220*41*30

AC 200-264V

DC24V

3.3A

3 Years

2) Input Characteristics

Input Voltage: AC 200-264V

Input Frequency: 50/60Hz

Input Current: 1.0 A Max (full loaded at the lower limited of input voltage range)

Inrush Current:45AMax. Cold start at 240Vac input, with rated load and 25℃ ambient.

Ac Leakage Current:0.35mA Max. At 240Vac input

3) Output Characteristics

1. Output Power

Voltage

Min. Load

Rated Load

Peak@10mS

Output power

24V

0A

3.3A

120W

100W



2. Line Regulation

Voltage

Min. Load

Rated Load

Line Regulation

Load Regulation

24V

0A

3.3A

±3%

±5%



3. Ripple and Noise

Under nominal voltage and nominal load,the ripple and noise are as follows when measure with Max.Bandwidth of 20MHz and Parallel 47uF/0.1uF,crossed connected at testing point.

Voltage

Ripple and Noise(Max.)

24V

200mV p-p

4. Turn on delay time: 2Second Max.at 220Vac input and output Max.load.

5. Rise time: 80mS Max.at 240Vac input and output Max load.

6. Efficiency: 89%Min, At 220Vac input voltage and full load calculation efficiency.

7. Overshoot: 10% Max. When power supply at turn or turn off.

4) Protection Functions:

1. Short circuit protection: auto recovered when short circuit faults remove.

2. Over current Protection: auto recovered when over current faults remove.

3. Over load protection: auto recovered when over current faults remove.

5)Test

Drop test, Salt Spray Test, Surge test, Ageing test, lightning test, Temperature Variation test etc.

6) Safety Requirement

EMC/EMI

1.Safety Standard:

Safety: Design by :GB4943-2022;IEC62368-1:2020;UL60950-1:2020

GB19510-1:2009;IEC62347-2-13:2017;UL8750:2012 Standard

2.Insulation resistance:100MΩmin at 500V DC
7) EMI Requirement

Designed according to the following standards:

1. EN55032B,ClassB

2. GB17625.1;EN61000-3-2,-3

3. EN55024;EN61000-4-2,3,4,5,6,8,11

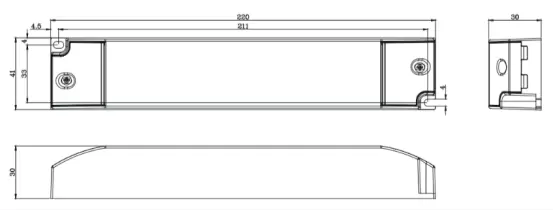

 8Structurer

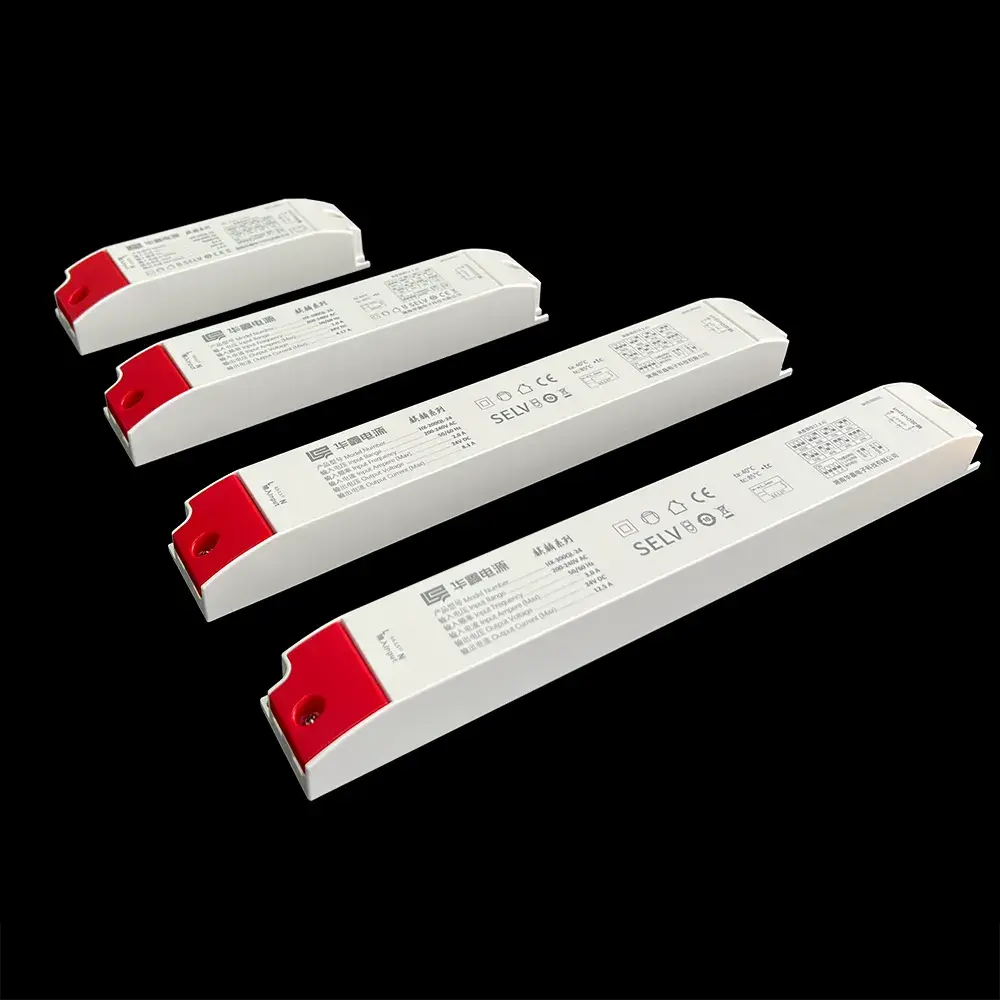

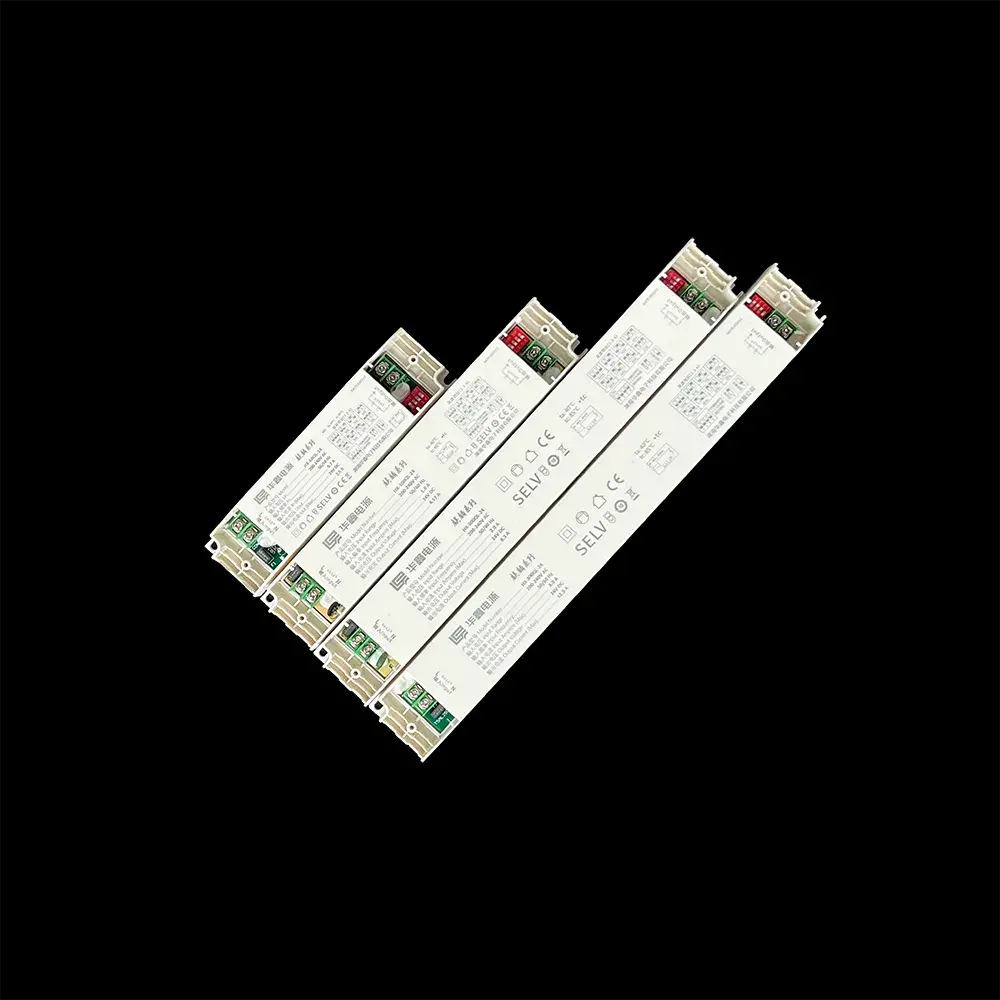

HX-QLSeries Specification



Model No.

Size/MM

Efficiency

Output current

PF

Output Volt

Input Volt

HX-60QL-24

160*41*30

≥89%

2.5A

0.6

24V DC

200240Vac

HX-100QL-24

220*41*30

≥89%

3.3A

0.6

24V DC

200240Vac

HX-200QL-24

300*41*30

90%

6.7A

0.6

24V DC

200240Vac

HX-300QL-24

320*41*30

≥92%

10A

0.6

24V DC

200240Vac


9) OEM

Customize label and Inner box

 10) Packing details Pack in a big brown carton outside and a box or a bubble bag per piece inside. (Or negotiate when order).

11)Shipping

12)Company Information


Hunan Huaxin (WHOOSH) Electronic Technology Co., Ltd.has specialized in LED AC to DC power supply manufacturing since 2004, located in Hunan province, in the central south of China. We have 6 production lines and 400 people in factory with 10,000 square meter, including the R&D team.

We have manufactured all kinds of LED power supply used for LED Sign, LED Advertising, LED Illumination, LED Screen, LED lightbox; CCTV Device, Industial Automation Facility, Electronic Communication Device, Medical Care Equipment, etc.

WHOOSH has passed ISO9001:2015 (certified by SGS) Quality Management System, Korea KC certification, EU CB Certification, CE, ROHS, CCC, EMS, LVD, IP67 Waterproof Level Certifications etc.

What's more, defective rate is less than 1% within 2 years.



--We are on exhibitions!

Each year we have 3-4 domestic exhibitions (ISLE, SIGN CHINA, SHANGHAI LIGHT EXPO etc.) and 2-3 overseas exhibitions ( Asian, Middle East etc.)



--Honor & Certifications:

ISO9001:2015 (certified by SGS) Quality Management System, Korea KC certification, EU CB Certification, CE, ROHS, CCC, EMS, LVD, IP67 Waterproof Level Certifications etc.



FAQ

Q: Can I get samples?

A: Yes, 1pc is available if needed.



Q: What’s your MOQ?

A: Normally the MOQ for commercial order is 1 carton for each kind of product.

However, 1pc can be available to support for your trail order, welcome to inquiry.



Q: Is there any discount?

A: Of course. Price is based on your quantity. We are committed to supplying best price for every customer.



Q: How about delivery time?

A: 1-25days which depends on detail items and quantity.



Exporting port:Guangzhou, Shenzhen, Shanghai, Yiwu, Lianyungang, Tashkent, etc. Guangzhou is the nearest port.



After-sales service:

A strong factory since 2004 and 400 employees, top 5 biggest manufacturer in China to support the aftersales.

We will always behind you to support you with less than 1% natural defective rate.

Payment term:T/T, Western Union, PayPal, or negotiate when order.

Any needs, we are always here for you.
