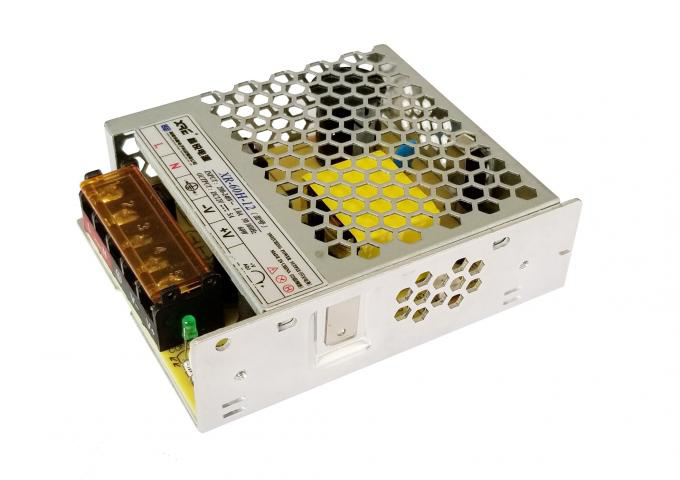

Single Output DC12V 60W LED Driver Power Supply For LED Strip
Single Output DC12V 60W LED Driver Power Supply For LED Strip
Single Output DC12V 60W LED Driver Power Supply For LED Strip
Single Output DC12V 60W LED Driver Power Supply For LED Strip
Single Output DC12V 60W LED Driver Power Supply For LED Strip
Single Output DC12V 60W LED Driver Power Supply For LED Strip
Single Output DC12V 60W LED Driver Power Supply For LED Strip
Single Output DC12V 60W LED Driver Power Supply For LED Strip

Single Output DC12V 60W LED Driver Power Supply For LED Strip


Place of Origin China
Brand Name XR
Certification CE
Model Number XR-60H-12
Minimum Order Quantity 1
Price USD$3-4 /pcs
Packaging Details Pack in a brown carton outside and a box per piece inside. (Or negotiate when order).
Delivery Time 2-7 days
Payment Terms T/T, Western Union, PayPal, or negotiate when order
Supply Ability 20,000pcs per day



Product Details
Input AC 200-240V, 50/60Hz Output DC 12V5A 60W
Warranty 2 Years IP Level IP20 Indoor
Housing Aluminium Housing OEM YES
Protections Short Circuit, Over Load, Over Voltage Working Temperature -20~40°C
Type Constant Voltage, Single Output. Non Dimmable Size 92*82*30mm
High Light Single Output 12V 60W LED Driver, IP20 12V 5A Power Supply, 12V 5A Power Supply For LED Strip
Product Description

12V5A 60W Slim Power Supply for LED Module and LED Strips and LED Sign

Product Description
Advantages

* AC input 200-240V, 50/60Hz

* DC output 12V 5A 60W

* Efficiency: >84%

* IP20 indoor use, 100% OEM compatible, 2 years warranty;

* Constant voltage, single input and output design;

* Workable from -20 degree to 60 degree;

* Separated level for thermal dissipation;

* Protections: short circuit, over load and over voltage;

* Defective rate is less than 1% in 2 years.

* 100% full load burn-in test before delivery;

* NO MOQ, regular stock, quick delivery;

* Application: LED Sign, LED Advertising, LED Illumination, etc.

1. Output Characteristics

1.1 Output Power

Voltage Min. Load Rated Load Peak@10mS Rated Output Power
DC 12V 0A 6A 66W 60W

1.2 Line Regulation

Voltage Min. Load Rated Load Line Regulation Load Regulation
DC 12V 0A 5A ±3% ±5%

1.3 Ripple and Noise

Under nominal voltage and nominal load,the ripple and noise are as follows when measure with Max.Bandwidth of 20MHz and Parallel 47uF/0.1uF,crossed connected at testing point.

Voltage Ripple and Noise(Max.)
12V DC 200mV p-p

1.4 Turn on delay time: 2 Seconds Max.at 220Vac input and output Max.load.

1.5 Rise time:400ms Max.at 220Vac input and output Max load.

1.6 Overshoot: 10% Max.When power supply at turn or turn off.

2. Protection Functions

2.1 Short circuit protection: auto recovered when short circuit faults remove.

2.2 Over current Protection: auto recovered when over current faults remove.

2.3 Over load protection: auto recovered when over current faults remove.

3. Test

Drop test

4. Safety Requirement

4.1 Safety Standard: Safety: Design by IEC60950 standard.

4.2 DIELECTRIC STRENGTH Hi-Pot:
Primary to secondary:1200Vac/10mA/60S for type test.
Primary to case:1200Vac/10mA/60S for type test.

4.3 Iusulation resistance:Primary to secondary:10MΩ min at 500V DC.

5. EMI Requirement

Designed according to the following standards:
5.1 FCC class B rules
5.2 EN55022 class B rules
5.3 GB9254-1998,GB17625.1-2003



pic-1

pic-2

pic-3

Related Products

pic-4

--By 6 steps, Whoosh Power Supply Ensures Stable Quality:

pic-5

pic-6

Packaging & Shipping
--Regular packing

Pack in a big brown carton outside and a box or a bubble bag per piece inside. (Or negotiate when order).

pic-7

--Shipping

pic-8

Company Information

Hunan Huaxin (WHOOSH) Electronic Technology Co., Ltd.has specialized in LED AC to DC power supply manufacturing since 2004, located in Hunan province, in the central south of China. We have 6 production lines and 400 people in factory with 10,000 square meter, including the R&D team.

We have manufactured all kinds of LED power supply used for LED Sign, LED Advertising, LED Illumination, LED Screen, LED lightbox; CCTV Device, Industial Automation Facility, Electronic Communication Device, Medical Care Equipment, etc.

WHOOSH has passed ISO9001:2015 (certified by SGS) Quality Management System, Korea KC certification, EU CB Certification, CE, ROHS, CCC, EMS, LVD, IP67 Waterproof Level Certifications etc.

What's more, defective rate is less than 1% within 2 years.

pic-9

pic-10

pic-11

--We are on the exhibitions!

Each year we have 3-4 domestic exhibitions (ISLE, SIGN CHINA, SHANGHAI LIGHT EXPO etc.) and 2-3 overseas exhibitions ( Asian, Middle East etc.)

pic-12

pic-12

--Honor & Certifications:

ISO9001:2015 (certified by SGS) Quality Management System, Korea KC certification, EU CB Certification, CE, ROHS, CCC, EMS, LVD, IP67 Waterproof Level Certifications etc.

pic-14

FAQ

Q: Can I get samples?
A: Yes, 1pc is available if needed.

Q: What’s your MOQ?
A: Normally the MOQ for commercial order is 1 carton for each kind of product.
However, 1pc can be available to support for your trail order, welcome to inquiry.

Q: Is there any discount?
A: Of course. Price is based on your quantity. We are committed to supplying best price for every customer.

Q: How about delivery time?
A: 1-25days which depends on detail items and quantity.

Exporting port:Guangzhou, Shenzhen, Shanghai, Yiwu, Lianyungang, Tashkent, etc. Guangzhou is the nearest port.

After-sales service:

A strong factory since 2004 and 400 employees, top 5 biggest manufacturer in China to support the aftersales.

We will always behind you to support you with less than 1% natural defective rate.

Payment term:T/T, Western Union, PayPal, or negotiate when order.

Any needs, we are always here for you.
