DC 12V 12.5A Light Box Power Supply 12Vdc 150 watt, Black housing Slim 12V LED Lighting power supply

Home > Products > DC 12V 12.5A Light Box Power Supply 12Vdc 150 watt, Black housing Slim 12V LED Lighting power supply

DC 12V 12.5A Light Box Power Supply 12Vdc 150 watt, Black housing Slim 12V LED Lighting power supply
DC 12V 12.5A Light Box Power Supply 12Vdc 150 watt, Black housing Slim 12V LED Lighting power supply
DC 12V 12.5A Light Box Power Supply 12Vdc 150 watt, Black housing Slim 12V LED Lighting power supply
DC 12V 12.5A Light Box Power Supply 12Vdc 150 watt, Black housing Slim 12V LED Lighting power supply
DC 12V 12.5A Light Box Power Supply 12Vdc 150 watt, Black housing Slim 12V LED Lighting power supply
DC 12V 12.5A Light Box Power Supply 12Vdc 150 watt, Black housing Slim 12V LED Lighting power supply
DC 12V 12.5A Light Box Power Supply 12Vdc 150 watt, Black housing Slim 12V LED Lighting power supply
DC 12V 12.5A Light Box Power Supply 12Vdc 150 watt, Black housing Slim 12V LED Lighting power supply
DC 12V 12.5A Light Box Power Supply 12Vdc 150 watt, Black housing Slim 12V LED Lighting power supply
DC 12V 12.5A Light Box Power Supply 12Vdc 150 watt, Black housing Slim 12V LED Lighting power supply
DC 12V 12.5A Light Box Power Supply 12Vdc 150 watt, Black housing Slim 12V LED Lighting power supply
DC 12V 12.5A Light Box Power Supply 12Vdc 150 watt, Black housing Slim 12V LED Lighting power supply
DC 12V 12.5A Light Box Power Supply 12Vdc 150 watt, Black housing Slim 12V LED Lighting power supply
DC 12V 12.5A Light Box Power Supply 12Vdc 150 watt, Black housing Slim 12V LED Lighting power supply

DC 12V 12.5A Light Box Power Supply 12Vdc 150 watt, Black housing Slim 12V LED Lighting power supply


Output Current 12.5 Ampere Output Type Single
Output Voltage 12Vdc Output Frequency 50/60Hz
Input Voltage 180-264Vac Output Power 150W
Warranty 3 Years Size 269*54.5*23MM
Protection Over-load, Over-voltage, Over-current, Short-circuit
High Light WHOOSH 12.5A Light Box Power Supply





Product Details

Model Number

HX-150CBL-12/24

LeadTime

Within 48 Hours: for regular stock models

Brand Name

WHOOSH / OEM

1-2 weeks: for OEM orders

Place of Origin

Hunan,China

Warranty

3 Years

MOQ

100PCS/Model

Sample Policy

Free samples 1-3PCS/Model

Customized Cost

Customized sticker/printing for free; Customized boxes for free >1000pcs each;

Payment Terms

T/T, Western Union,Money Gram

Supply Ability

22,000pcsper day

Aftersales

< 0.3% according to statistics collected;

Replacement against defective products pictures or more application details if needed

Ports support

Guangzhou, Shenzhen, Shanghai, Ningbo, Yi Wu, other mainland ports

Price

With detailed inquiry, Accurate quotation can be emailed within 24 hours;

Inquiry to: [email protected]

Product Description
Product Name

Hua Xin DC 12V 12.5A 150W DC 12V LED Driver 150W for LED lighting Box, Slim 12V LED POWR SUPPLY 150W Without fan

Fan-less 12V LED Driver 60W/120W/150W/200W/300W For LED Lights, 12V/24V DC Regulated Power Supply for LED light box

1) Sepcifications
Model Size/mm Input Output Output Current Warranty
HX-150CBL-12 234X54.5X23 AC 200-240V DC 12V 12.5A 3 Years
HX-150CBL-24 234X54.5X23 AC200-240V DC 24V 6.25A 3 Years
2) Input Characteristics

Input Voltage: AC 180-264V
Input Frequency: 50/60Hz
Input Current: 3.2A Max (full loaded at the lower limited of input voltage range)
Inrush Current: 80 Amps Max. Cold start at 240Vac input, with rated load and 25℃ ambient.
Ac Leakage Current: 3.5mA Max. At 240Vac input

3) Output Characteristics

1. Output Power

Voltage Min. Load Rated Load Peak@10mS Rated Output Power
DC 12V 0A 12.5A 180W 150W
DC 24V 0A 6.25A 180W 150W

2. Line Regulation

Voltage Min. Load Rated Load Line Regulation Load Regulation
DC 12V 0A 12.5A ±3% ±5%
DC 24V 0A 6.25A ±3% ±5%

3. Ripple and Noise

Under nominal voltage and nominal load,the ripple and noise are as follows when measure with Max.Bandwidth of 20MHz and Parallel 47uF/0.1uF,crossed connected at testing point.

Voltage Ripple and Noise(Max.)
12V DC 300mV p-p
24V DC 300mV p-p

4. Turn on delay time: 2Second Max.at 220Vac input and output Max.load.

5. Rise time: 400 mS Max.at 220Vac input and output Max load.

6. Efficiency: 86% Min, At220Vac input voltage and full load calculation efficiency.

7. Overshoot: 10% Max.When power supply at turn or turn off.

4) Protection Functions

1Short circuit protection: auto recovered when short circuit faults remove.

2. Over current Protection:  auto recovered when over current faults remove.

3. Over load protection:  auto recovered when over current faults remove.

4. Over voltage protection: locked down, restart to recover

5) Test

Drop test, Salt Spray Test, Surge test, Ageing test, lightning test, Temperature Variation test etc.

6) Safety Requirement

1. Safety Standard: Safety: Design by IEC60950 standard.

2. DIELECTRIC STRENGTH Hi-Pot:
Primary to secondary:1200Vac/10mA/60S for type test.
Primary to case:1200Vac/10mA/60S for type test.

3. Iusulation resistance:Primary to secondary:10MΩ min at 500V DC.

7) EMI Requirement

Designed according to the following standards:
1. FCC class B rules
2. EN55022 class B rules
3. GB9254-1998,GB17625.1-2003

8) Structurer

pic-1

9) OEM: Customize label and Inner box
10) Packing details
11) More product pictures

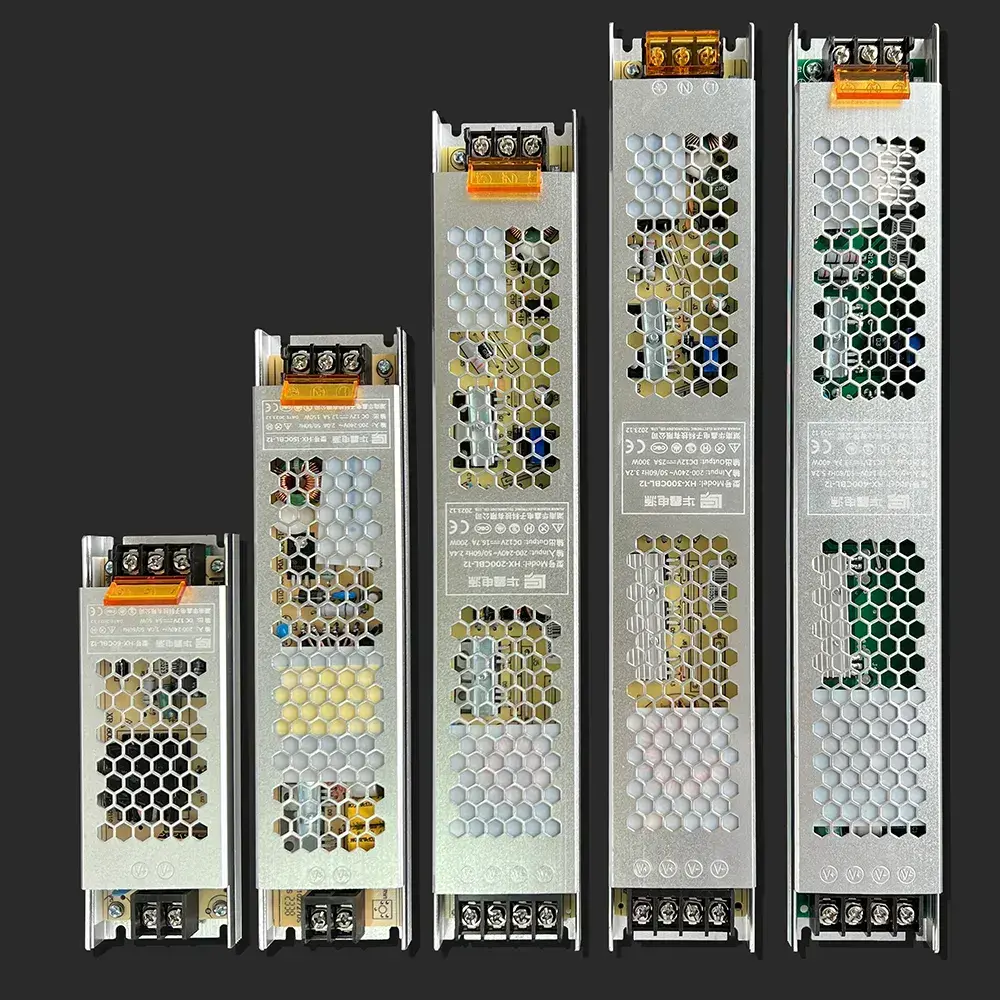

Complete HX-***CBL Series, 3 years warranty Slim LED Power Supply Series

Model Size L*W*H Power Input Output Cooling IP Level Warranty PCS/CTN CTN / CM G.W per Ctn (KG)
HX-60CBL-12/24 155*54.5*23 60W AC 200-240V DC 12V 5A    DC 24V 2.5A No fan IP20 3 Years 120 46*29*28 20.0
HX-150CBL-12/24 234*54.5*23 150W AC 200-240V DC 12V 12.5A DC 24V 6.25A No fan IP20 3 Years 60 35*25*32 18.5
HX-200CBL-12/24 315.5*54.5*23 200W AC 200-240V DC 12V 16.7A DC 24V 8.3A No fan IP20 3 Years 50 34*30*32 19.2
HX-300CBL-12/24 348*54.5*23 300W AC 200-240V DC 12V 25A  DC 24V 12.5A No fan IP20 3 Years 50 39*37*26 21.5
12) Production capacity and quality control
Our capacity Built in 2004, 17 Years experience,
10,000 square meters factory, 400+ employees,
8 production lines, 20000pcs/day
ISO9001:2015 Quality Management System Certified, 7S administration
50+ Engineer teams, innovative and independent R&D ability
EMC lab, SMT plant, Advanced machines and test equipment
Drop test, high-low temperature test, Salt spray test, surge resistance test, Ageing test,Functional test, MTBF test etc.

pic-5

Customer Questions & Answers
    Did not match any questions!
You can tick the products you need and communicate with us in the message board.
  MODEL SIZE/MM AC INPUT DC OUTPUT VOLT. OUTPUT CURRENT RATED POWER COOLING PCS/CTN WARRANTY
HX-60CBL-12 155×54.5×23 180-264VAC DC 12V 5A 60W NO FAN 80 3 YEARS
HX-60CBL-24 155×54.5×23 180-264VAC DC 24V 2.5A 60W NO FAN 80 3 YEARS
HX-120CBL-12 234×54.5×23 180-264VAC DC 12V 10A 120W NO FAN 60 3 YEARS
HX-120CBL-24 234×54.5×23 180-264VAC DC 24V 5A 120W NO FAN 60 3 YEARS
HX-150CBL-12 234×54.5×23 180-264VAC DC 12V 12.5A 150W NO FAN 60 3 YEARS
HX-150CBL-24 234×54.5×23 180-264VAC DC 24V 6.25A 150W NO FAN 60 3 YEARS
HX-200CBL-12 315.5×54.5×23 180-264VAC DC 12V 16.7A 200W NO FAN 50 3 YEARS
HX-200CBL-24 315.5×54.5×23 180-264VAC DC 24V 8.3A 200W NO FAN 50 3 YEARS
HX-300CBL-12 348×54.5×23 180-264VAC DC 12V 25A 300W NO FAN 45 3 YEARS
HX-300CBL-24 348×54.5×23 180-264VAC DC 24V 12.5A 300W NO FAN 45 3 YEARS
