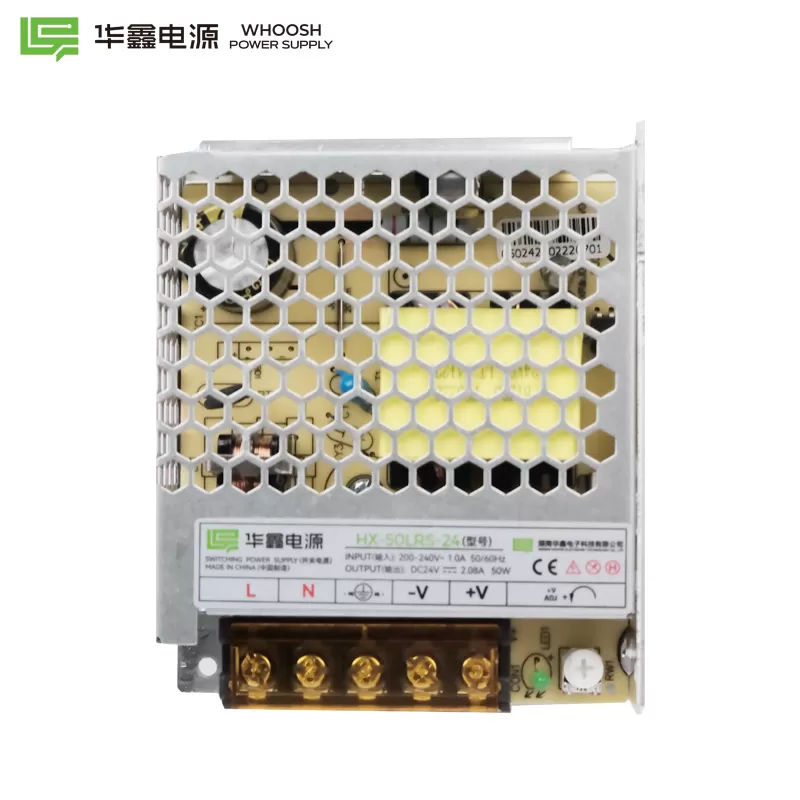

WHOOSH HX-35/50LRS-12 Miniature Size and 1U Lower Profile High Efficiency Long Life Power Supply
WHOOSH HX-35/50LRS-12 Miniature Size and 1U Lower Profile High Efficiency Long Life Power Supply
WHOOSH HX-35/50LRS-12 Miniature Size and 1U Lower Profile High Efficiency Long Life Power Supply
WHOOSH HX-35/50LRS-12 Miniature Size and 1U Lower Profile High Efficiency Long Life Power Supply

WHOOSH HX-35/50LRS-12 Miniature Size and 1U Lower Profile High Efficiency Long Life Power Supply

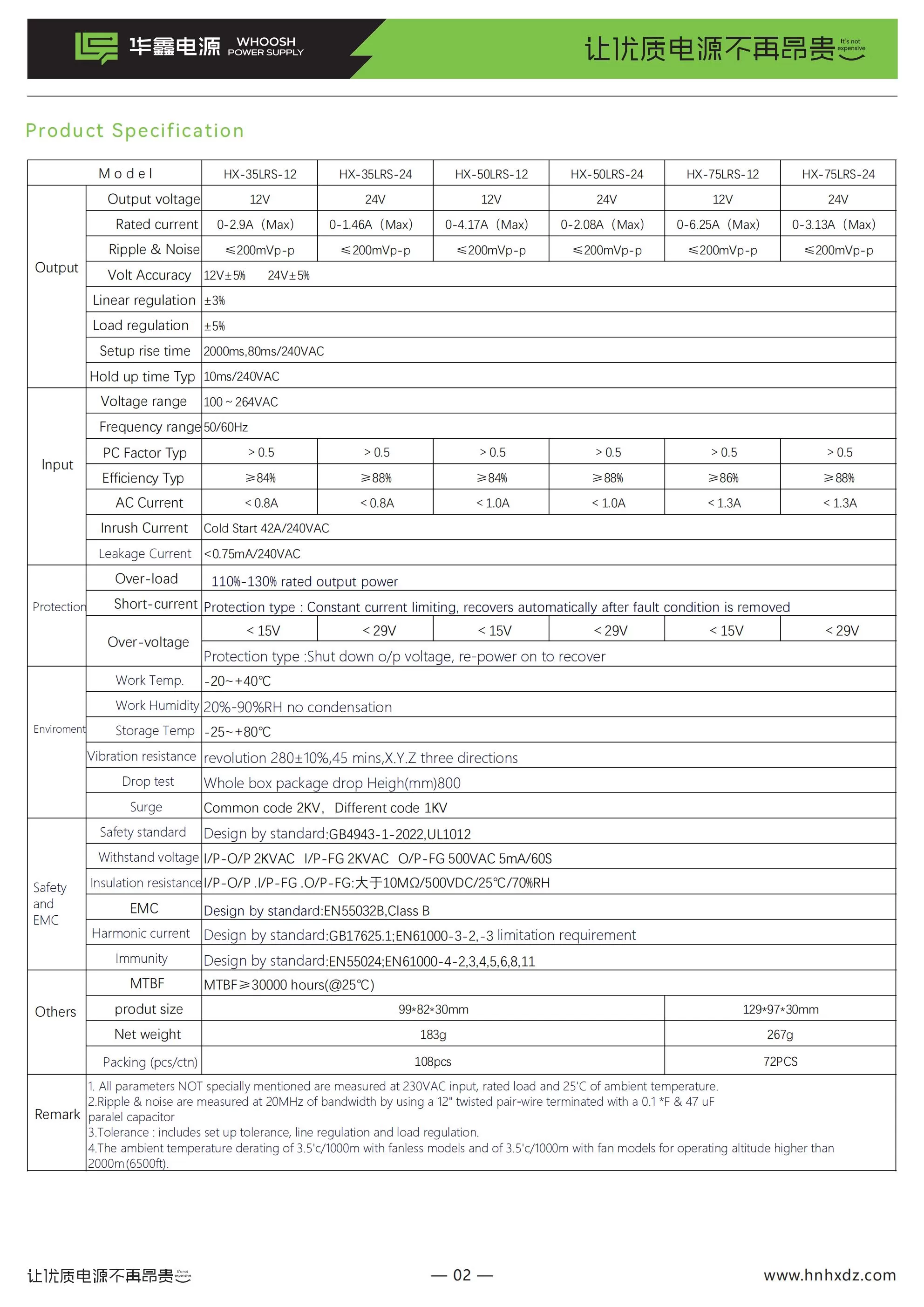

Output Current 2.9A Output Type Single
Output Voltage 12V/24V Output Frequency 50/60Hz
Input Voltage 100-264Vac Output Power 35W

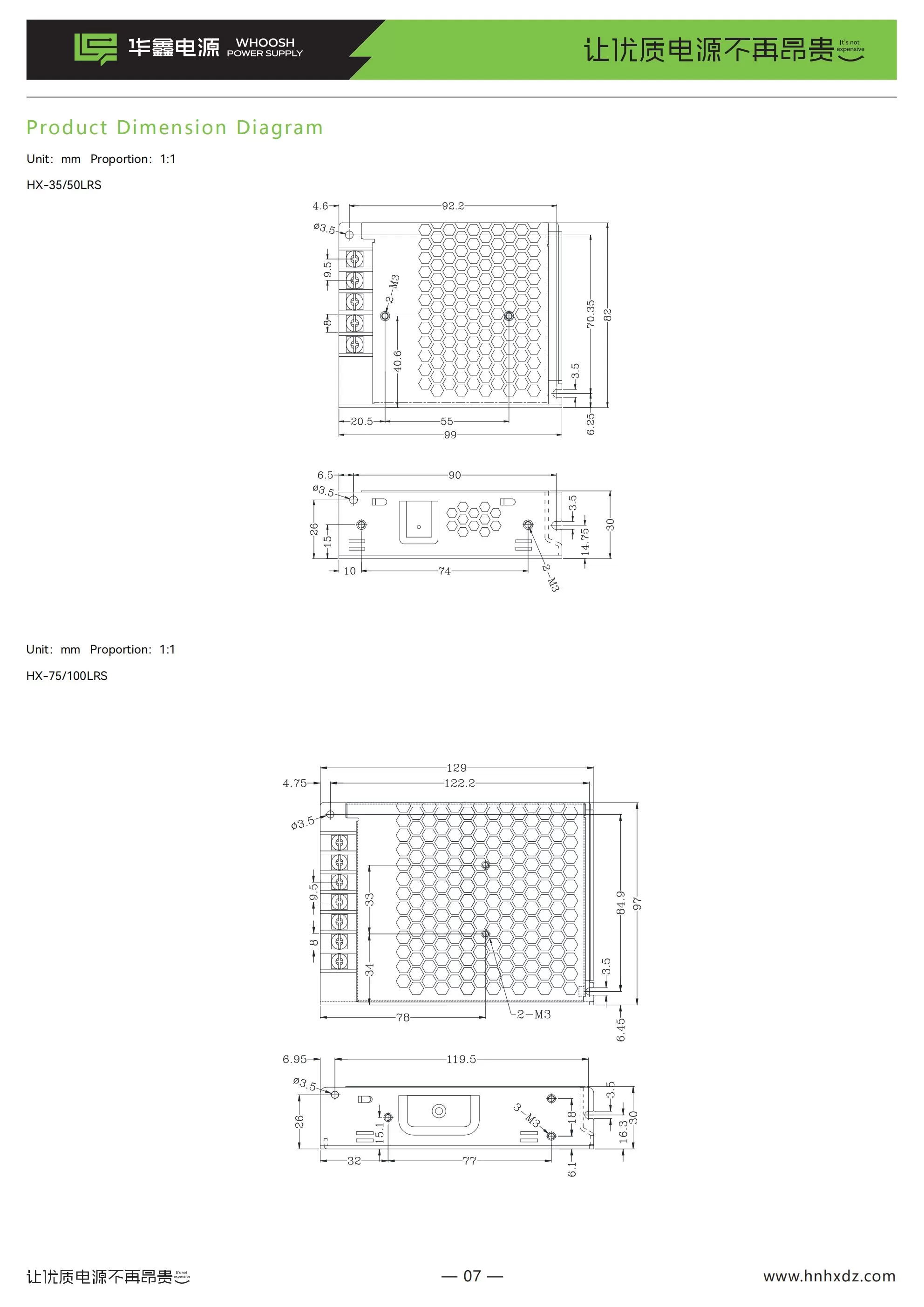

Warranty 3 Years Size 99X82X80mm
Material Aluminum Housing Efficiency 84%
OEM Yes Protection Over-load, Over-voltage, Over-current, Short-circuit

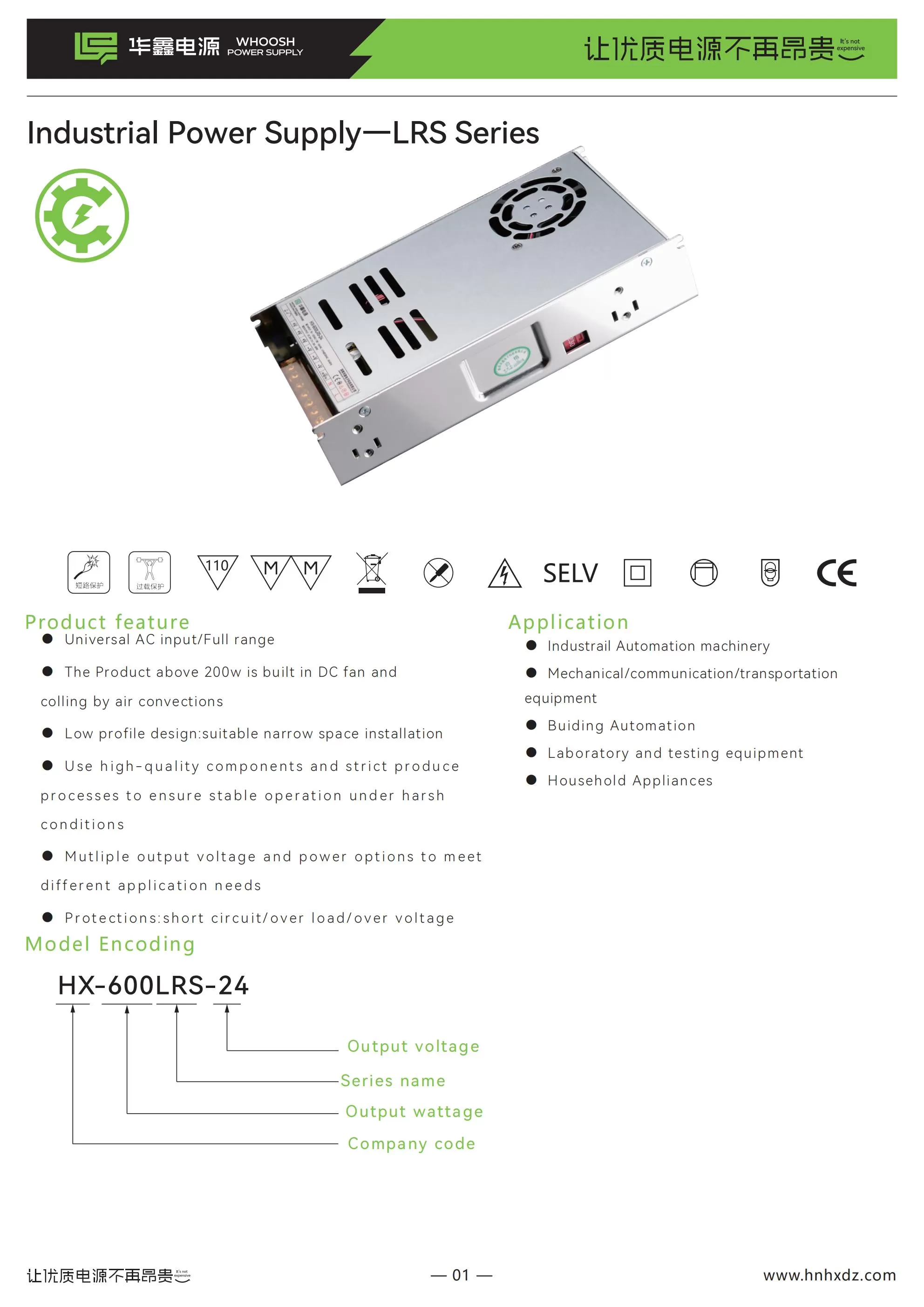

Product feature

● Universal AC input/Full range

● The Product above 200w is built in DC fan and colling by air convections

● Low profile design:suitable narrow space installation

● Use high-quality components and strict produce processes to ensure stable operation under harsh conditions

● Mutliple output voltage and power options to meet different application needs

● Protections:short circuit/over load/over voltage















Customer Questions & Answers
    Did not match any questions!
You can tick the products you need and communicate with us in the message board.
  • Factory Capacibility
 Hunan Whoosh Electronic Technology Co., LTD
Whoosh Electronics was founded in 2004 with a factory area of more than 10000 square meters. We have passed the ISO9001:2015 quality management system, and our product have successively  passed the 3C, CE,FCC certifications. Now we have more than 400 employees, including more than 50 R&D and engineering technicians and 8 production lines. The product mainly including  indoor and outdoor switching power supply and adapter. Products are widely used in industrial automation, LED lighting, illumination and security devices, medical equipment and other fields.
  • Certification

  • Exhibition

  • FAQ

    Q1: Can I get samples?
    A: Yes, 1pc is available if needed.

    Q2: What’s your MOQ?
    A: Normally the MOQ for commercial order is 1 carton for each kind of product.
    However, 1pc can be available to support for your trail order, welcome to inquiry.

    Q3: Is there any discount?
    A: Of course. Price is based on your quantity. We are committed to supplying best price for every customer.

    Q4: How about delivery time?
    A: 1-25days which depends on detail items and quantity.

    Exporting port:
    Guangzhou, Shenzhen, Shanghai, Yiwu, Lianyungang, Tashkent, etc. Guangzhou is the nearest port.
    After-sales service:
    A strong factory since 2004 and 400 employees, top 5 biggest manufacturer in China to support the aftersales.
    We will always behind you to support you with less than 1% natural defective rate.

    Payment term:
    T/T, Western Union, PayPal, or negotiate when order.




INQUIRY
MODELSIZE/MMAC INPUTDC OUTPUT VOLT. OUTPUT CURRENTRATED POWERCOOLINGPCS/CTNWARRANTY
